PARS EVO

In designing the PARS EVO case, which is in fact a huge upgrade of the initial versions of PARS and PARS+ cases, salient features of the Pars family, such as simplicity along with beauty and rare structural quality, have been maintained.

  • Extended interior space and possibility to install 7 fans
  • With magnetic filters in all inlet air ducts
  • Equipped with one 120mm fan installed on the back of the case
  • Equipped with one USB 3.0 port on the front panel
  • Ability to install water cooling with radiator dimensions of 120/140/240/ 280mm
  • With the ability to install most professional CPU coolers up to 160mm high
  • Ability to install graphics card with a maximum length of 390mm
  • With strong legs and anti-vibrate pads to increase stability and strength of the case
  • Equipped with PSU metal cover



PARS EVO is in fact a huge upgrade of the initial versions of PARS and PARS+ cases. In designing the new PARS EVO case, salient features of the Pars family, such as simplicity along with beauty and rare structural quality, have been maintained.

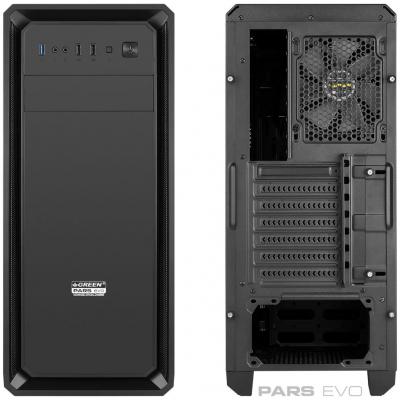

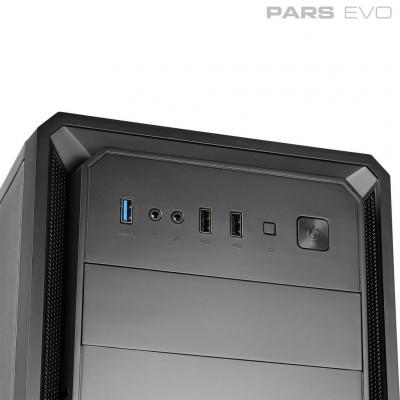

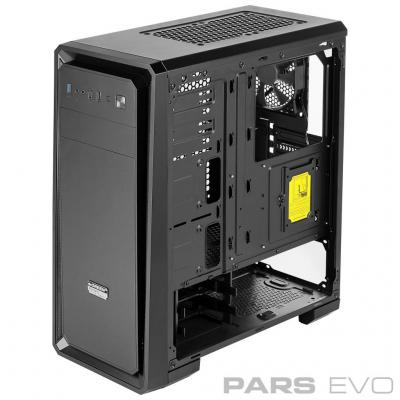

PARS EVO case has an accrete and stylish panel in the front section which is equipped with one USB3.0 port, two USB2.0 ports, and audio jacks supporting High Definition.

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

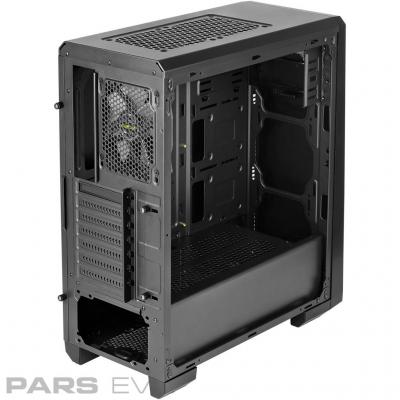

This case benefits from a strong structure made of electro-galvanized steel (SECC) with a thickness of 0.7mm and the application of legs with new design and of course, extremely durable, guarantees the stable establishment of this case even in the hardest situation possible.

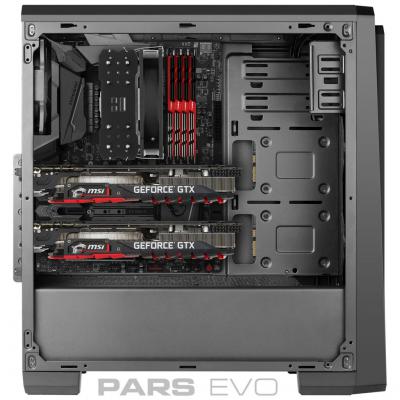

PARS EVO classifies in the category of Advanced Mid-Tower cases by including 7 expansions slot which has the ability to support the newest motherboards with sizes of ATX (12”x9.6”), mini ITX, and micro-ATX. Moreover, professional graphics cards with a maximum length of 390mm in different configurations such as 3Way SLI/ CrossFire can be installed in this case.

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

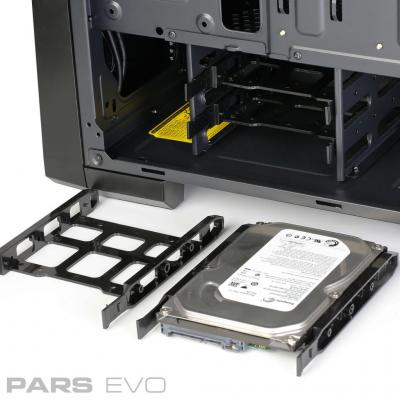

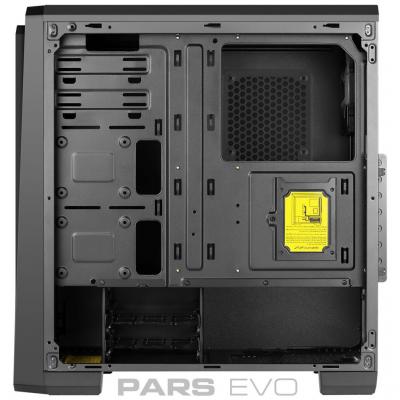

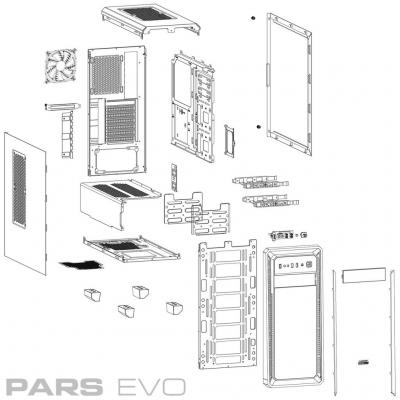

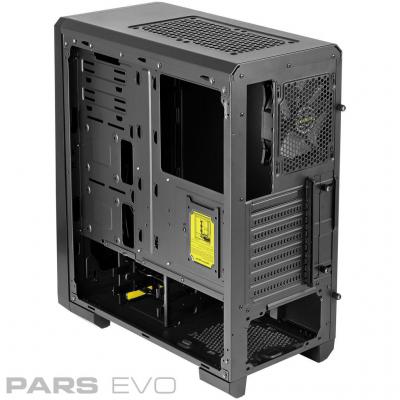

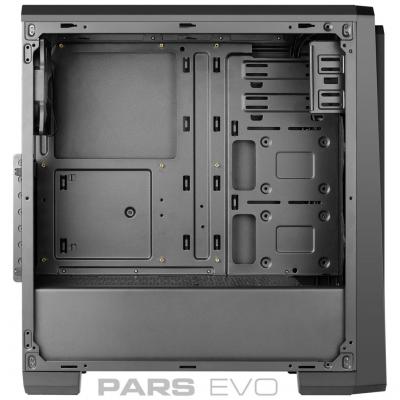

The special structure design of this model is such that, by considering a specific cover for installing storage equipment and power in the bottom tray of the case along with its cabling management ability, cabling complexities have been greatly reduced. In order to increase the empty interior space of the case, airflow has noticeably increased, and finally, assembling the case is done more easily and of course with double beauty.

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

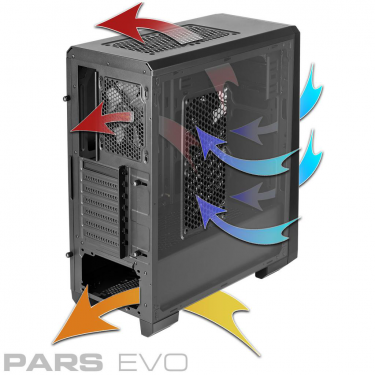

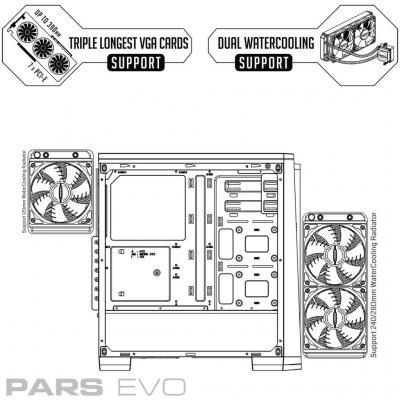

One of the other significant differences between the PARS EVO case and the former versions is in the cooling section (air ventilation) that due to the more case width and the extended space, the ability to install professional cooling systems for the processor and graphics card is provided. This case simultaneously supports 240 / 280mm water cooling on the front of the case and 120mm water cooling on the back of the case, also the ability to install two 120 mm fans on the roof, two 120mm fans on the side cover of the case and two 120 / 140mm fans on the front of the case is provided.

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

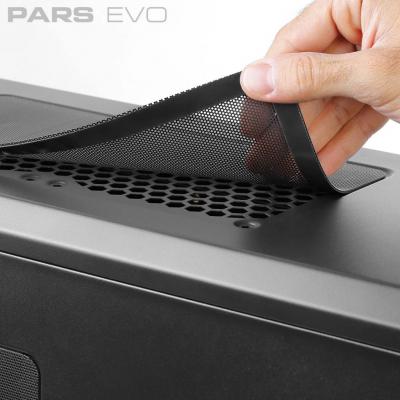

The interesting point in this section is the installation of magnetic filters with the ability to separate fast and easily for all inlet air ducts in this case, which have a great effect on absorbing better and preventing dust from entering the case.

کیس_اداری_خانگی_پارس_اوو_گرین_green_pars_evo

Physical Specification
Model PARS EVO
Case Form Factor Mid-Tower
Dimensions 475mm x 200mm x 450mm
Weight 5175 grams
Exterior Paint Black
Interior Color Black
Material 0.7mm Full SECC Chassis
Side Cover Material Solid Metal w/ Fan Mounting
PSU Cover Yes
PSU Support ATX PS2 PSU
Technical Specifications
Expansion Slots 7 Qty
Motherboard Support Mini-ITX - 6.7" x 6.7" , Micro-ATX - 9.6" x 9.6" , ATX - 12" x 9.6"
Maximum GPU Length 390mm
SLI / CrossFireX Support 2Way / 3Way
Maximum CPU Cooler Height 160mm
Water Cooling Support 120mm , 240mm , 280mm , 140mm
PSU Position Botton position
Maximum PSU Length 210mm
Cable Management Yes
ODD Support 1 Qty
Combo Drive Support 2 Qty
HDD Drive Support 2 Qty
SSD Drive Support 3 Qty
Front Panel Ports 1x USB 3.0 , 2x USB 2.0 , HD Audio
Cooling
Dust Filter Three filters in the Top and Front of the case and Side panel
Total Fan Count 7 Qty
Pre-Installed Fans 1 Qty
Back Fan Mount (Pre-Installed) 1x 120mm
Front Fan Mount 2x 120/140mm
Top Fan Mount 2x 120mm
Side Fan Mount 2x 120mm
Installed Fans Specifications
Fan Dimensions 120mm x 120mm x 25mm
Fan Bearing (Fluid Shield Bearing (FSB
Detachable Fan Blades Yes
Max Fan RPM 1100RPM ±10%
Max Fan Air Flow 57CFM
Fan Voltage Range 5V - 13.0V - DC
Max Fan Rated Current 0.14A
Warranty and After-sales Service
Warranty Period 24 Mounths

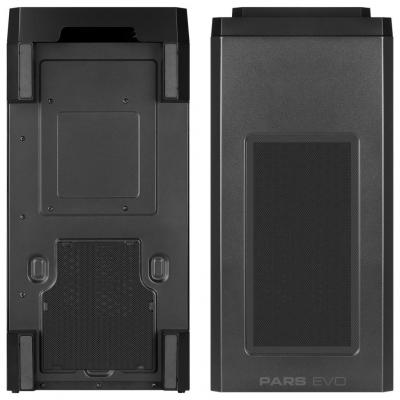

PARS EVO Gallery

GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

There are many factors involved in choosing the right case.
* Ability to install standard and convenient parts
* Proper cooling potential and cooling system
* Strength and stability commensurate with the internal components
* features such as input and output ports of the case
* Appearance and functionality with the place of use of the system (office, home, gaming, server and industrial)

The disadvantages of non-standard cases include the following:
* Interference of electromagnetic waves
* Impossibility of correct installation of parts inside non-standard cases
* Lack of strength of the panel and the body of the case
* Do not use the HD port in the audio output and non-standard output input ports
* Despite mentioning the USB2.0 port on the case, most cheap cases on the market have a USB1.1 port
* Lack of uniformity of glands in the integrated case system and the possibility of failure if there is a problem with the system input power
* Lack of proper ventilation of parts

By referring to the technical "Specifications" table of the case (maximum length of the graphics card) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main manufacturer of the graphics card

By referring to the technical "Specifications" table of the case (maximum cooling height and the possibility of installing water cooling) and matching the number entered in the technical specifications table with the dimensions mentioned by the main cooler's manufacturer

By referring to the technical "Specifications" table of the case (maximum power length) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main power manufacturer

By referring to the table of technical "Specifications" and matching the number entered with the desired number of storage devices

* The physical aspect of Case's warranty:
As you know, physical damage to any piece of hardware will not be covered by the warranty, and the physical warranty of the case is only for new products and before the system assembly. Therefore, it is recommended that you take a physical look at the case in the presence of the seller and make sure that its appearance is fine.

* Warranty of electronic and mechanical parts of the case:
However, you may not be able to make sure that some of the electronic and mechanical components of the case are in good condition by observing them. Therefore, all electronic components of GREEN cases, including USB and Audio ports, as well as mechanical components, including pre-installed fans of the case, will be covered by the GREEN Warranty for a period of 24 months from the date of manufacture. It should be noted that the warranty of these electronic and mechanical parts will not include their physical damage.

Due to the impossibility of investigating the problem that has arisen in the company's internal transportation system or by the esteemed buyer, it is definitely recommended to take a closer look at the case in the presence of the seller and make sure of the appearance of its body. Otherwise, providing services to physically damaged cases will involve cost and possibly time due to supply the part.

To install the fans by default on the case by GREEN is correct, but if you want to move or add a fan to the case, it is necessary to pay attention to the following points:
* To enter the cool air from the front, it is on the main door of the case and the bottom of the case
* For hot air outlet from the back and roof of the case
* In all standard fans, on the back of the fan, where the label of technical specifications and the name of the fan are mentioned, which is the output and direction of the fan flow in this direction.

In general, there are three types of sockets for connecting case fans:
a) 3-pin socket
b) 4-pin PWM socket
c) 4-pin Molex socket
The 3-pin and 4-pin PWM sockets must be connected to your motherboard, or if there is a controller fan on the case, it must be connected to the case controller fan, and in these two models it is possible to control the fan speed by the motherboard or the controller fan.
The 4-pin Molex model connects directly to the system power supply and it is not possible to control the fan speed

In this video, the reasons and solutions to solve this problem are fully explained:

https://www.aparat.com/v/1gxWG

If you encounter a special case in which you could not choose the right case, you can call +982188911378 (ext. 7551 to 7555) and our experts will answer your questions in this regard.
