HIWA

Own a standard case with the least cost. Simple design, suitable space, and body strength are three features of domestic/administrative and affordable HIWA cases.

  • An affordable choice for office and home applications
  • With a 120mm fan and the ability to install 3 fans
  • Ability to install a graphic card with a maximum length of 360mm
  • Ability to install one water cooling with dimensions of 120mm on the back of the case
  • With two USB 2.0 ports along with an HD Audio port
  • With large valve on motherboards tray and behind CPU socket to replace or service of the CPU cooler
  • With strong legs and anti-vibrate pads to increase the stability of the case

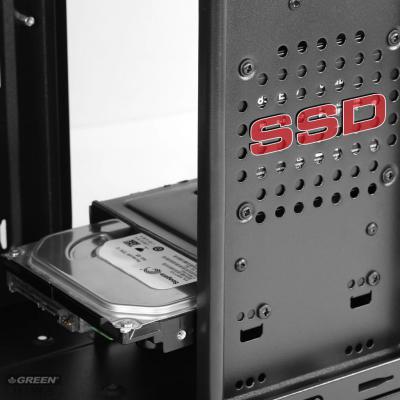

  • Ability to support a solid-state disk (SSD) in common size of 2.5" inches





کیس گرین هیوا Hiwa


HIWA case (HIWA means “hope” in the Kurdish language) targets the market of economical and administrative cases with very suitable price and of course with quality and facility appropriate for GREEN brand and hopes to prove that it is possible to prepare a standard case with minimum cost.

کیس گرین هیوا Hiwa

One of the most important features of the HIWA case is a body sheet made of SECC steel with a thickness of 0.5 mm and a strong skeleton design which is considered unique in its price range and compared to similar models. Also, this model is offered with an extremely silent/low noise 120mm fan and the ability to install a fan with dimensions of 120/140mm on the front panel and one fan on the side cover is predicted for it. A feature that is also less common in this price range.

کیس گرین هیوا Hiwa

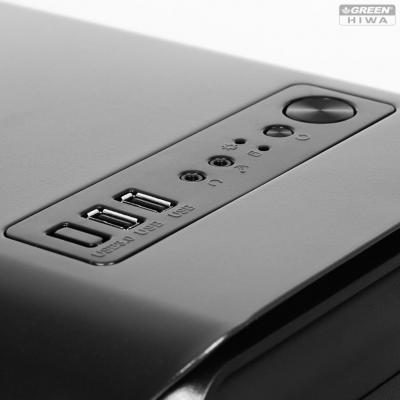

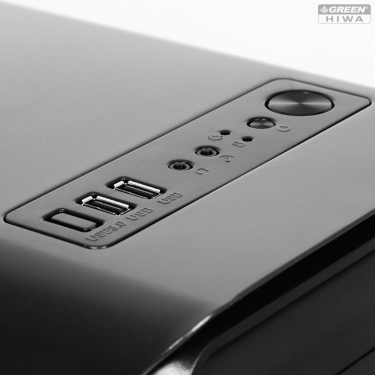

In addition, the top panel of the case is equipped with two USB 2.0 ports and two 3.5mm HD Audio jacks. Meanwhile, most of the cases in this price range are equipped with USB 1.1 ports and AC’97 audio outputs in practice.

کیس گرین هیوا Hiwa

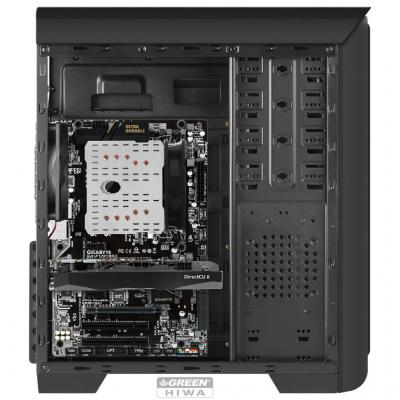

The main structure and interior space

  • HIWA case is designed and produced in the standard size of ATX Mid-Tower Chassis and without limitation in installing common hardware components
  • Ability to install a water cooling with dimensions of 120mm on the back of the case. (with ability to move up and down up to 20mm for a better adjustment of pipes)
  • With the ability to install professional CPU coolers up to 155mm high
  • With strong legs and anti-vibrate pads to increase the stability of the case





کیس گرین هیوا Hiwa

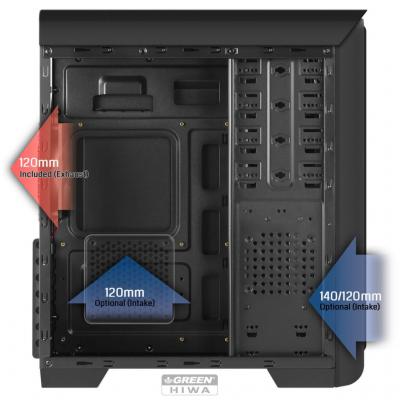

Cooling system

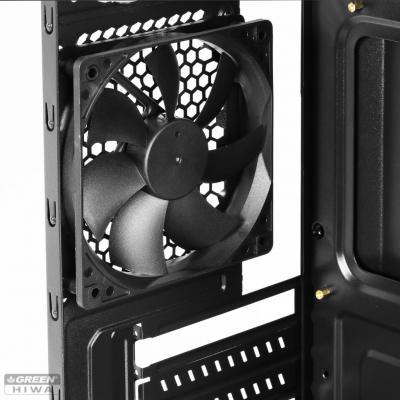

  • Benefit from a silent/low noise 120mm fan on the back of the case for hot air to exit the case interior space
  • Ability to install a 120/140mm fan on the front of the case for cool air to enter case interior space

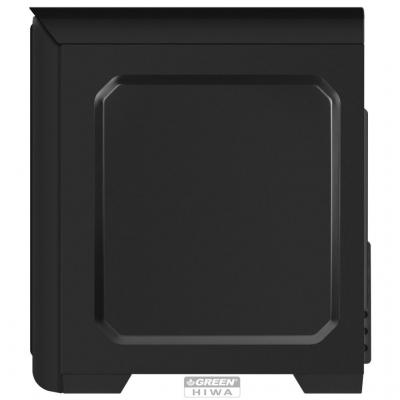

  • Ability to install a 120mm fan on the side door for cool air to enter case interior space
  • Ability to install a water cooling in dimensions of 120mm on the back of the case (with ability to move up and down up to 20mm for a better adjustment of pipes)
  • With air ventilation slots on all E-slots brackets behind the case



کیس گرین هیوا Hiwa



Physical Specification
Model HIWA
Case Form Factor Mid-Tower
Dimensions 465mm x 195mm x 405mm
Weight 3450 Gram
Exterior Paint Black
Interior Color Black
Material 0.5mm Full SECC Chassis
Side Cover Material Solid Metal w/ Fan Mounting
PSU Support ATX PS2 PSU
Technical Specifications
Expansion Slots 7 Qty
Motherboard Support Mini-ITX - 6.7" x 6.7" , Micro-ATX - 9.6" x 9.6" , ATX - 12" x 9.6"
Maximum GPU Length 360mm
SLI / CrossFireX Support 2Way
Maximum CPU Cooler Height 155mm
Water Cooling Support 120mm
PSU Position Top Position
Maximum PSU Length Unlimited
ODD Support 2 Qty
HDD Drive Support 2 Qty
SSD Drive Support 1 Qty
Front Panel Ports 2x USB 2.0 , HD Audio
Cooling
Total Fan Count 3 Qty
Pre-Installed Fans 1 Qty
Back Fan Mount (Pre-Installed) 1x 120mm
Front Fan Mount 1x 120/140mm
Side Fan Mount 1x 120mm
Installed Fans Specifications
Fan Dimensions 120mm x 120mm x 25mm
Fan Bearing (Fluid Shield Bearing (FSB
Detachable Fan Blades Yes
Max Fan RPM 1100RPM ±10%
Max Fan Air Flow 57CFM
Fan Voltage Range 5V - 13.0V - DC
Max Fan Rated Current 0.14A
Warranty and After-sales Service
Warranty Period 24 Mounths

HIWA Gallery

GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

There are many factors involved in choosing the right case.
* Ability to install standard and convenient parts
* Proper cooling potential and cooling system
* Strength and stability commensurate with the internal components
* features such as input and output ports of the case
* Appearance and functionality with the place of use of the system (office, home, gaming, server and industrial)

The disadvantages of non-standard cases include the following:
* Interference of electromagnetic waves
* Impossibility of correct installation of parts inside non-standard cases
* Lack of strength of the panel and the body of the case
* Do not use the HD port in the audio output and non-standard output input ports
* Despite mentioning the USB2.0 port on the case, most cheap cases on the market have a USB1.1 port
* Lack of uniformity of glands in the integrated case system and the possibility of failure if there is a problem with the system input power
* Lack of proper ventilation of parts

By referring to the technical "Specifications" table of the case (maximum length of the graphics card) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main manufacturer of the graphics card

By referring to the technical "Specifications" table of the case (maximum cooling height and the possibility of installing water cooling) and matching the number entered in the technical specifications table with the dimensions mentioned by the main cooler's manufacturer

By referring to the technical "Specifications" table of the case (maximum power length) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main power manufacturer

By referring to the table of technical "Specifications" and matching the number entered with the desired number of storage devices

* The physical aspect of Case's warranty:
As you know, physical damage to any piece of hardware will not be covered by the warranty, and the physical warranty of the case is only for new products and before the system assembly. Therefore, it is recommended that you take a physical look at the case in the presence of the seller and make sure that its appearance is fine.

* Warranty of electronic and mechanical parts of the case:
However, you may not be able to make sure that some of the electronic and mechanical components of the case are in good condition by observing them. Therefore, all electronic components of GREEN cases, including USB and Audio ports, as well as mechanical components, including pre-installed fans of the case, will be covered by the GREEN Warranty for a period of 24 months from the date of manufacture. It should be noted that the warranty of these electronic and mechanical parts will not include their physical damage.

Due to the impossibility of investigating the problem that has arisen in the company's internal transportation system or by the esteemed buyer, it is definitely recommended to take a closer look at the case in the presence of the seller and make sure of the appearance of its body. Otherwise, providing services to physically damaged cases will involve cost and possibly time due to supply the part.

To install the fans by default on the case by GREEN is correct, but if you want to move or add a fan to the case, it is necessary to pay attention to the following points:
* To enter the cool air from the front, it is on the main door of the case and the bottom of the case
* For hot air outlet from the back and roof of the case
* In all standard fans, on the back of the fan, where the label of technical specifications and the name of the fan are mentioned, which is the output and direction of the fan flow in this direction.

In general, there are three types of sockets for connecting case fans:
a) 3-pin socket
b) 4-pin PWM socket
c) 4-pin Molex socket
The 3-pin and 4-pin PWM sockets must be connected to your motherboard, or if there is a controller fan on the case, it must be connected to the case controller fan, and in these two models it is possible to control the fan speed by the motherboard or the controller fan.
The 4-pin Molex model connects directly to the system power supply and it is not possible to control the fan speed

In this video, the reasons and solutions to solve this problem are fully explained:

https://www.aparat.com/v/1gxWG

If you encounter a special case in which you could not choose the right case, you can call +982188911378 (ext. 7551 to 7555) and our experts will answer your questions in this regard.
