NOTUS 200-PWM

The most important features of the 200-NOTUS GREEN mid-range air cooler can be 3 copper heat pipes with a diameter of 6mm, more than 43 aluminum fins, ultra-quiet 2100RPM fan equipped with 13xWhite LED lighting, along with lightweight and installation Quick and easy pointed. By installing this affordable air cooler on high-end processors of gaming systems, there will be no worries about the heat dissipation of these high-consumption models.

  •     Suitable for gaming and home systems
  •     Equipped with 3 heat-pipes with a diameter of 6mm
  •     Heat-Pipe Direct Touch (HDT) technique for faster heat transfer
  •     Has a very low fan 2100RPM equipped with a Hydraulic Bearing core
  •     Has the ability to easily remove the fan blade
  •     Fan equipped with 13xWhite LED lighting
  •     Ultra-low fan noise
  •     Low weight and quick and easy installation
  •     Comes with a 1.5 gram tube of GREEN GT-4 Premium thermal paste
  •     Equipped with 4Pin fan connector and using PWM technique to control fan speed
  •     Compatible with most processor sockets on Intel and AMD platforms



The NOTUS 200-PWM GREEN air cooler is one of the newest members of the NOTUS family, recently launched by GREEN. This inexpensive and powerful product has unique features that set it apart from its competitors.

کولر نوتوس 200 گرین notus_200_pwm


The new NOTUS 200 cooler is equipped with three 6 mm U-shaped heat transfer pipes that directly connect to the processor surface after passing through dense aluminum blades, a feature called direct touch heat pipe for direct connection of heat pipes with CPU level, heat transfer is done more efficiently.

The NOTUS 200 cooler is equipped with a 100 mm PWM fan that has a 13xLED with white light on the inner wall of the fan frame. The speed of this fan can be changed from 200RPM to 2100RPM depending on the CPU temperature. The blades of this fan are designed in such a way that in addition to reducing noise, they direct the airflow to the heatsink in a more focused way. Other strengths of this air cooler include its very low weight of 370 grams along with its very simple and fast installation.

Comparison table of technical specifications of NOTUS series coolers

Physical Specification
Cooling Family Air Cooler
Model NOTUS 200-PWM
Series NOTUS
Heat-Sink Type Heat-Pipe CPU Cooler
Heat-Sink Dimensions 111mm x 55mm x 147mm
Overall Dimensions 111mm x 82mm x 147mm
Heath-Sink Weight 280 Gram
Overall Weight 370 Gram
Number, Type and Diameter of the Heath-Pipes 3x 6mm U-Shaped
Number of Blades and Heat-sink Alloy 43x Pure Aluminum Fins
Heat-sink Surface Technology (Heat-Pipe Direct Touch (HDT
Fan Specifications
Fan Dimensions 100mm x 25mm x 100mm
Fan Lighting 13x White LED
Fan Speed 1200-2100RPM ±5%
Max Fan Air Flow 62CFM
Fan Noise 18.2-22dBA ±5%
Fan Bearing Hydraulic Bearing
Detachable Fan Blades Yes
Fan RPM Control PWM
Fan Connector Type 4Pin PWM
Fan Voltage Range 6V-13.2V
Thermal Paste Specifications
Thermal Grease Type & Weight (GT-4 PREMIUM / 0.5ml (1.5g
Socket Support
Intel Sockets LGA775 , LGA1150 , LGA1151 , LGA1155 , LGA1156 , LGA1200
AMD Sockets AM4 , AM3/+ , AM2/+ , FM1 , FM2/+
TDP Support 125W
Warranty and After-sales Service
Warranty Period 24 Mounths

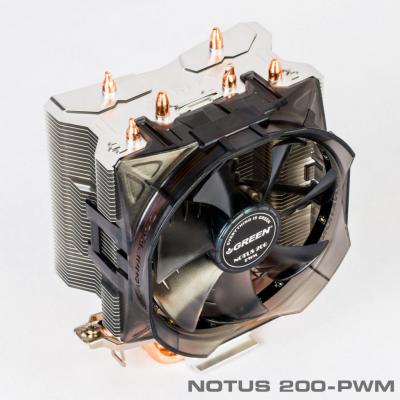

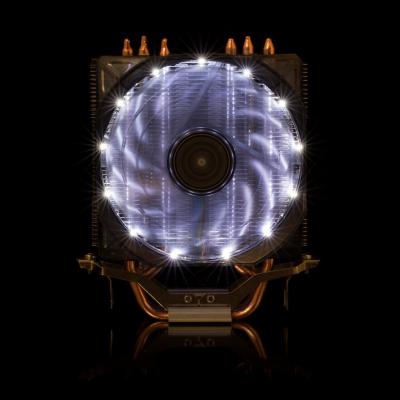

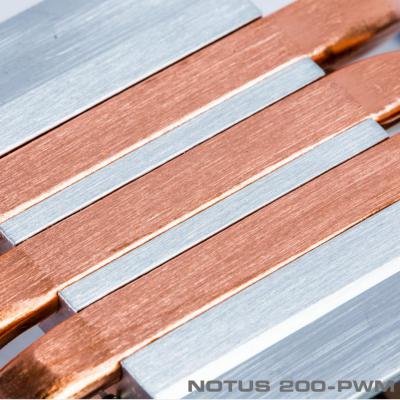

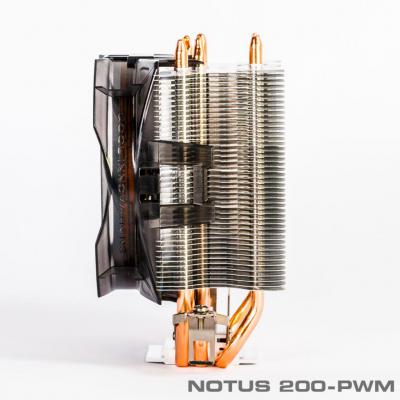

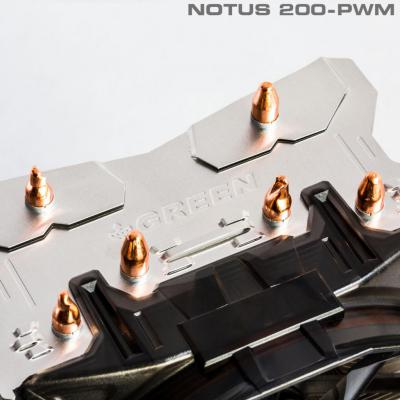

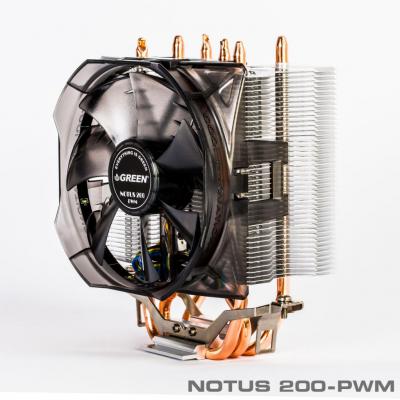

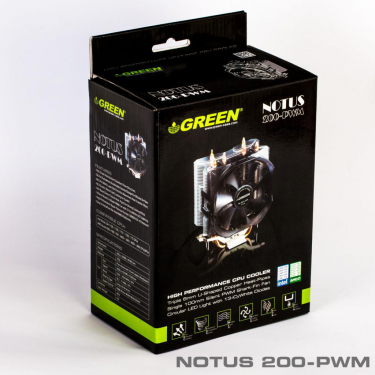

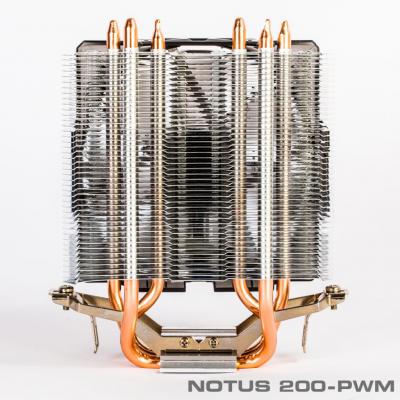

NOTUS 200-PWM Gallery

Shahrsakhtafzar Review
19 تیر, 1396
Rating : 10 / 8.2
Conclusion : کولر GREEN NOTUS 200-PWM با قیمت مناسب، عملکرد مطلوبی ارائه می کند و می تواند شما را از شر عملکرد ضعیف و نویز آزار دهنده کولر استوک رهایی بخشد.
سیستم نصب این کولر با تمامی سوکت های فعلی از جمله AMD AM4 سازگاری دارد، بنابراین می توان آن را با آخرین پردازنده های روز استفاده کرد. نصب و استفاده از این کولر بسیار آسان است.
در مجموع اگر به دنبال یک ایر کولر کارآمد با حداقل هزینه هزینه هستید، GREEN NOTUS 200-PWM می تواند یک انتخاب مقرون به صرفه و کارآمد باشد.
User Manual
Manual Containing Installation Guide And Technical Specifications
Size : 5.76MB
GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

The reason for this problem is related to the fan speed control technique in the motherboard Bios settings. In the Bios settings, change the fan speed control technique to PWM Mode.
