HURACAN FAN GFK120M-ARGB (Fan Kit)

HURACAN FAN GFK120M-ARGB 3-digit fan green kit is designed for users who, in addition to efficient ventilation and, of course, managed noise, also care about the beauty and lighting of their professional system. High airflow thanks to a maximum rotation speed of 1500RPM and the unique design of the blades, support for ARGB lighting with motherboard synchronization (MB SYNC), hub with wired and wireless control (IR remote control) and synchronization Motherboard rotation speed (PWM) is one of the most central features of this kit.

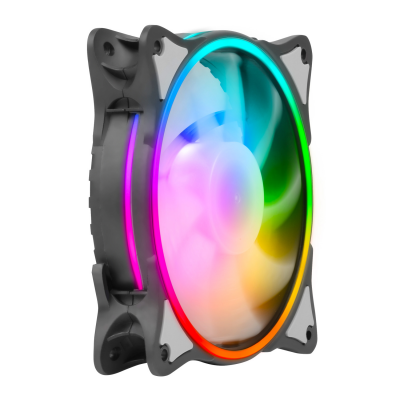

  • Fans equipped with stunning ARGB lighting from the center and rim around the frame
  • It has a 9-channel central hub with the ability to synchronize ARGB lighting and fan rotation speed with the motherboard
  • Ability to quickly and easily separate the blade from the body for periodic service
  • 9-bladed blades with a unique design to reduce air turbulence and thus less noise
  • Long-lasting Rifle Bearing (100,000 hours)
  • The best fit between performance with sound and fan vibration with anti-shake pads
  • Lighting compatible with all motherboards and lighting systems equipped with ARGB 3-pin (5V) connector
  • Connector compatible with the lighting hub of the Z5 / Z6 / G6 / G2 / ARIA Green cases
  • Equipped with remote control (IR) for wireless control of lighting and fan rotation speed
  • Has complete accessories for a variety of applications and special uses
  • 2 years Green warranty

Note: The PWM function is only available as a Clone following another PWM fan

Powerful and Colorful!

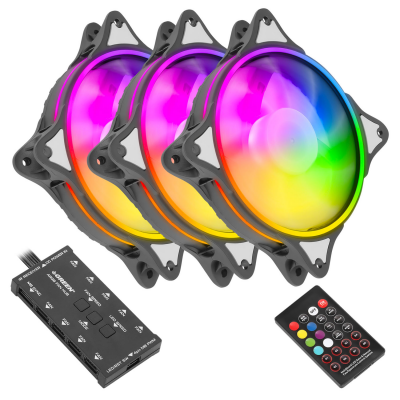

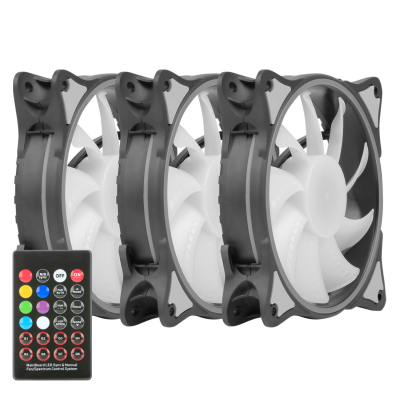

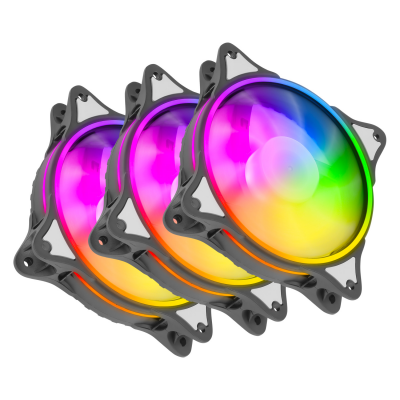

Multiply the charm of your professional system, as well as improve system ventilation thanks to dazzling ARGB lighting, with the HURACAN FAN GFK120M-ARGB fan kit, which includes 3 x 1500RPM fans and a 9-channel central hub equipped with remote control!

Upgrade your system ventilation

Featuring three 120mm fans with a maximum speed of 1500 RPM and airflow and pressure of 65 CFM and 1.75 mm / H2O, respectively, this kit improves the ventilation performance of the case and in practice significantly reduces the heat of high-consumption parts of professional systems.

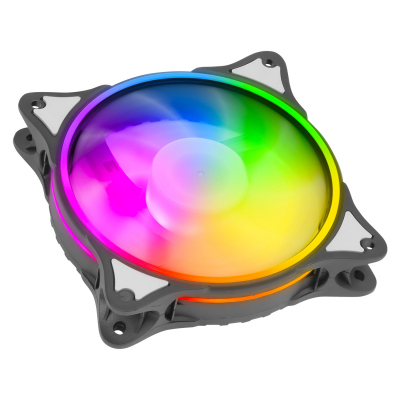

Enjoy the symphony of colors

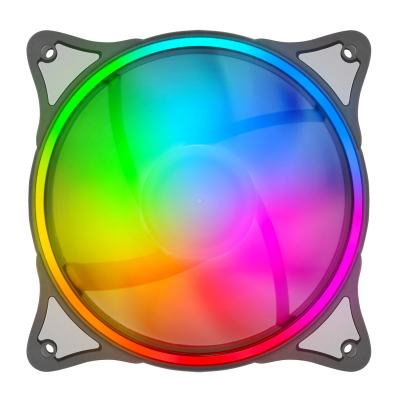

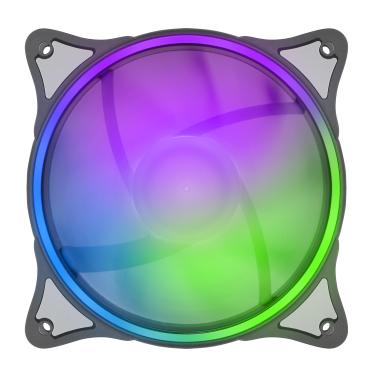

Fans of the HURACAN FAN GFK120M-ARGB GREEN kit are ready to turn you into an exciting symphony of colors with dozens of eye-catching lighting effects thanks to 20 x 5050 RGB ultra-bright LEDs mounted on the two center pieces and rim. around the frame. Invite.

Exemplary build quality

The frame and fan blades of this kit are made of the highest quality ABS plastic possible. High-precision mold design combined with plastic injection in the most modern methods ensured that the weight of the material was evenly distributed across all parts of the frame and blades. This ensures very low stability and vibration in this series of fans in mass production.

Silicone anti-vibration pads

All contact points of the HURACAN FAN GFK120M-ARGB Green fan kit with the case are equipped with silicone pads. These ultra-flexible and soft pads will neutralize even the smallest vibrations, preventing possible noise.

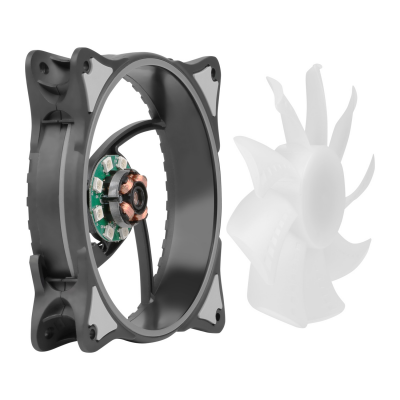

Fan kanadını ayırabilme özelliği

Bu işlevsellik sayesinde, artık toz almak veya fanların bakımını yapmak için kasayı tamamen açmanıza gerek yok. Tek yapmanız gereken, servis sonrasında bıçakları dışarı doğru çekip yerlerine yeniden takmak. Çok hızlı ve kolay!

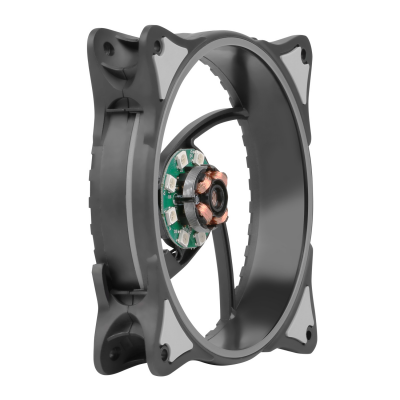

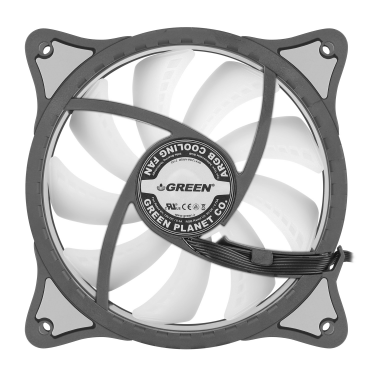

Rifle Bearing teknolojisine sahip fan yatağı

The fan core with Rifle Bearing technology is a new and modified generation of Sleeve Bearings. In this type of core, the bearing has helical grooves that allow lubricating fluid to be pumped to the upper parts of the shaft. In fact, fans with this technology do not have the limitations of Sleeve Bearing fans in horizontal angle mounting and have a similar lifespan to ball type fans, despite the very low noise.

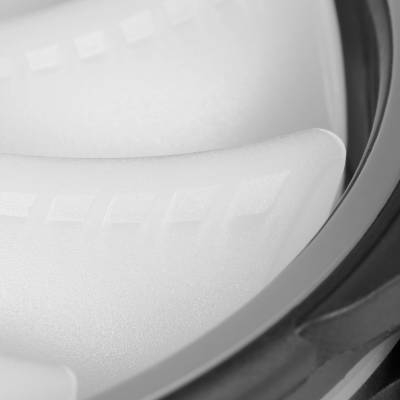

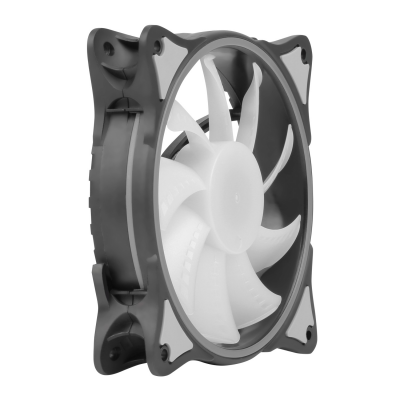

Unique fan blade design

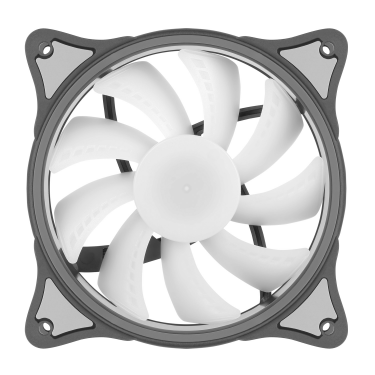

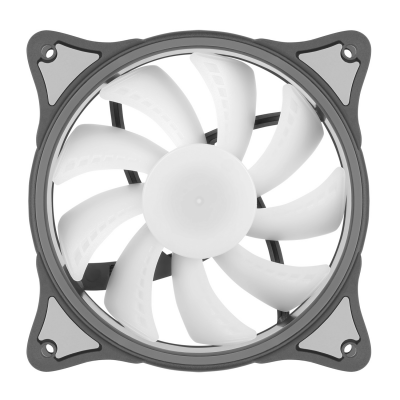

The fans of this kit are equipped with a blade, which is equipped with 9 blades of unique design. The special design of this wing ensured that turbulence in the airflow was minimized. As a result, despite the significant airflow (maximum 65CFM), the noise of these fans is quite low, and in this regard, the HURACAN FAN GFK120M-ARGB fan kit is classified as a very quiet fan.

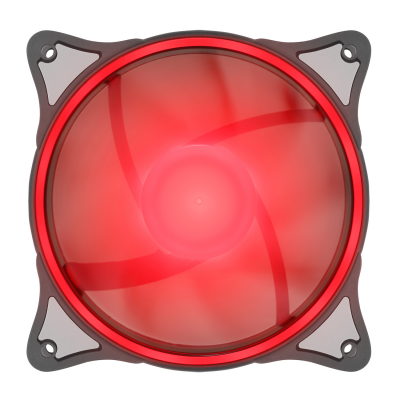

ARGB lighting has dozens of attractive effects

This fan kit is equipped with a central illumination hub (ARGB) Addressable RGB with remote control (IR). Thanks to this new lighting technique, digital control signals and the ability to address and control each diode individually. Lighting, you will see much more beautiful lighting effects. ARGB connector (5P (3V) and 4Pin PWM socket, which has the ability to synchronize lighting and fan rotation speed (PWM) with most of them (MB Sync), as well as having dozens of colors and lighting effects (speed adjustable).

Technical Specifications
Cooling Family Kit of 3 fan cases
Model GFK120M-ARGB (3IN1)
Fan Dimensions 120mm x 120mm x 25mm
Lighting Addressable RGB (ARGB)
Fan RPM Control PWM , DC Voltage
Fan Airflow Type Air Flow
Color of Blade & Frame Body: Black / Blades: White
Fan Bearing Rifle Bearing
Number & Technology of Blades 9x Angled Fin Blades
Detachable Fan Blades Yes
Fan Speed 700-1500RPM ±10%
Max Fan Air Flow 65CFM
Max Fan Air Pressure 1.75mm/H2O
Fan MTBF 100,000Hrs
Fan Noise 23dBA - Max
Fan Voltage Current FAN: 12V / 0.3A | ARGB: 5V / 0.75A
Fan Voltage Range (5V ~ 13.2V (DC
Fan Power Consumption FAN: 3.6W | ARGB: 3.75W
Fan Connector Type (6Pin (DC Voltage+3Pin ARGB
Length and Type of Wire 550mm / Flat Black Cable
Stabilization Pad 8x Anti Vibration Silicone Pad
Installation tool 4x Black Screw , MB Sync Cable , PWM Sync Cable
Warranty and After-sales Service
Warranty Period 24 Mounths

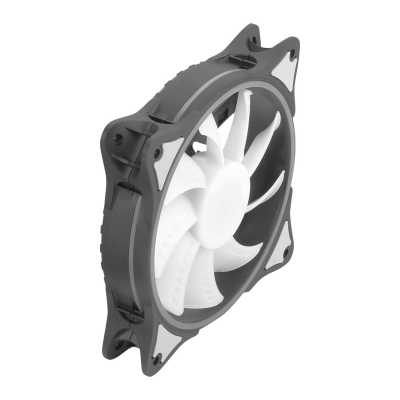

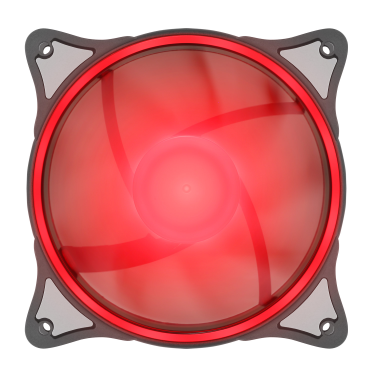

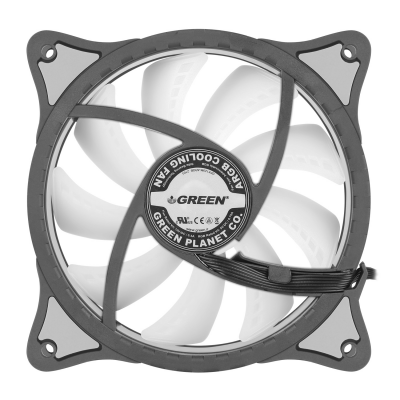

HURACAN FAN GFK120M-ARGB (Fan Kit) Gallery

User Manual
Manual Containing Installation Guide And Technical Specifications
Size : 14.3MB
GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

Yes. The lighting hub intended for this fan kit itself has dozens of extremely eye-catching lighting effects.

The lighting controller synchronization capability of this kit is compatible with motherboards with 3Pin ARGB sockets (most ASUS, MSI, ASRock motherboards) or 3Pin VDG (for GIGABYTE motherboards) with 5V digital addressable RGB voltage.

This feature will be activated by pressing the "M/B Sync" button on the remote control.

No, 4Pin RGB sockets have analog signal and 12V output voltage and are not compatible with the lighting controller of this kit. The lighting controller synchronization capability of this kit is only compatible with motherboards with 3Pin ARGB or 3Pin VDG sockets with 5V digital or Addressable RGB voltage.

Make sure that the IR infrared sensor is exposed to the remote control during installation of the kit.

To activate this feature, you must select the FAN AUTO button on the remote control. Also connect the PWM hub connector to sockets CPU_FAN, CPU_OPT FAN, or PUMP FAN only. Also make sure the Bios version and the motherboard control and monitoring software are up to date.
* Note: The only way to use the PWM controller is to use a PWM fan with a 1 to 2 conversion, so that the hub controller of this fan can adjust its speed in the form of a clone with another fan.

By connecting the Reset Case switch connector to this socket, the lighting effects of the fans change each time you press the Reset Case switch. Also, by pressing and holding this switch for 3 seconds, the lighting synchronization mode with the motherboard (MB Sync) is activated.

Yes. To activate this feature, you must first activate the FAN AUTO key on the remote control and then M/B SYNC.
