Oraman

با حداقل هزینه صاحب یک کیس استاندارد شوید. طراحی ظاهری زیبا، فضای مناسب و امکانات مناسب  مهم ترین ویژگی کیس خانگی/اداری و خوش قیمت Oraman محسوب می شوند.

  • انتخابی مقرون به صرفه برای کاربردهای اداری و خانگی
  • دارای 1 عدد فن 120mm و قابلیت نصب 4 عدد فن
  • قابلیت نصب یک عدد واترکولینگ در ابعاد 120mm در قسمت پشت کیس
  • دارای 1 پورت USB 3.0 به همراه درگاه صدا از نوع HD Audio
  • دارای دریچه بزرگ بر روی سینی مادربرد و پشت سوکت پردازنده، جهت تعویض و یا سرویس آسان کولر پردازنده
  • دارای پایه‌های مستحکم و پدهای لرزه گیر جهت افزایش ایستایی کیس
  • قابلیت پشتیبانی از 3 عدد دیسک جامد (SSD) در سایز متداول 2.5 اینچ

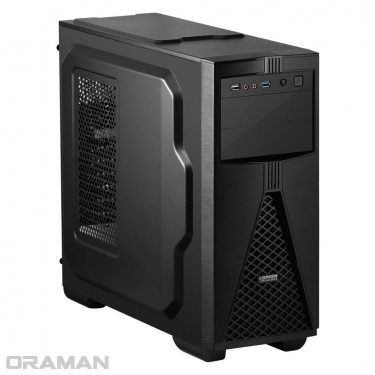

کیس اورامان

 کیس ORAMAN مناسب سیستم های متداول اداری و خانگی بوده و با توجه به قیمت و امکانات مناسبش، یک انتخاب ایده آل برای کاربران میانی سیستم های کامپیوتری می باشد.

کیس اورامان

برخی خصوصیات متمایز کیس اورامان

- بهره مندی از اسکلت معکوس داخلی (نصب پاور در قسمت پایین) به جهت کاهش دمای داخلی و افزایش عملکرد کلی سیستم.

- پشتیبانی از اغلب مادربردهای متداول در سایز ATX

- پشتیبانی از پورت جدید USB3.0 با امکان اتصال مستقیم به مادربردهای جدید (20-pin)

- دارای رابط جایگزین USB3.0 to USB2.0 جهت استفاده در مادربردهای فاقد پورت USB3.0

- دارای یک عدد فن 12 سانتی متری در قسمت پشت (خروجی هوای گرم) و قابلیت نصب تا 4 عدد فن مطابق استاندارد Intel TAC2.0

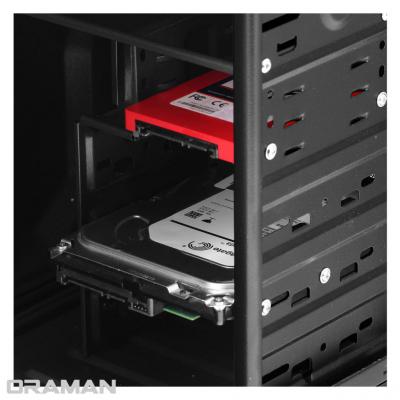

- قابلیت نصب 3 عدد هارد SSD در سایز “2.5

- قابیت نصب کارت های گرافیکی نیمه حرفه ای تا عمق 27 سانتی متر.

- قابلیت نصب کولر پردازنده تا ارتفاع 152 میلی متر (بدون احتساب برجستگی کاور بغل)

- قابلیت نصب واتر کولینگ (دارای دو شکاف جهت عبور لوله های ورودی و خروجی)

- دارای چهار عدد پایه مستحکم با ارتفاع 27 میلیمتر جهت تامین بهتر هوای ورودی منبع تغذیه.

- دارای فیلتر قابل شستشو در قسمت ورودی هوای منبع تغذیه (کف کیس)

کیس گرین اورامان oraman



Physical Specification
Model Oraman
Case Form Factor Mid-Tower
Dimensions 430mm x 195mm x 450mm
Weight 3200 گرم
Exterior Paint Black
Interior Color مشکی
Material 0.45mm Full SECC Chassis
Side Cover Material Solid Metal w/ Fan Mounting
PSU Support ATX PS2 PSU
Technical Specifications
Expansion Slots 7 Qty
Motherboard Support Mini-ITX - 6.7" x 6.7" , Micro-ATX - 9.6" x 9.6" , ATX - 12" x 9.6"
Maximum GPU Length 270mm
SLI / CrossFireX Support 2Way
Maximum CPU Cooler Height 152mm
Water Cooling Support 120mm
PSU Position Botton position
Maximum PSU Length Unlimited
Cable Management Yes
ODD Support 2 Qty
HDD Drive Support 3 Qty
SSD Drive Support 3 Qty
Front Panel Ports 1x USB 3.0 , 1x USB 2.0 , HD Audio
Cooling
Dust Filter 1 عدد فیلتر کشویی در بخش کف کیس
Total Fan Count 4 Qty
Pre-Installed Fans 1 Qty
Back Fan Mount (نصب شده) 1x 120mm
Front Fan Mount 1x 120mm
Side Fan Mount 2x 120mm
Installed Fans Specifications
Fan Dimensions 120mm x 120mm x 25mm
Fan Bearing (Fluid Shield Bearing (FSB
Detachable Fan Blades دارد
Max Fan RPM 1100RPM ±10%
Max Fan Air Flow 57CFM
Fan Voltage Range 5V - 13.0V - DC
Max Fan Rated Current 0.14A
Warranty and After-sales Service
Warranty Period 24 ماه

Oraman Gallery

GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

There are many factors involved in choosing the right case.
* Ability to install standard and convenient parts
* Proper cooling potential and cooling system
* Strength and stability commensurate with the internal components
* features such as input and output ports of the case
* Appearance and functionality with the place of use of the system (office, home, gaming, server and industrial)

The disadvantages of non-standard cases include the following:
* Interference of electromagnetic waves
* Impossibility of correct installation of parts inside non-standard cases
* Lack of strength of the panel and the body of the case
* Do not use the HD port in the audio output and non-standard output input ports
* Despite mentioning the USB2.0 port on the case, most cheap cases on the market have a USB1.1 port
* Lack of uniformity of glands in the integrated case system and the possibility of failure if there is a problem with the system input power
* Lack of proper ventilation of parts

By referring to the technical "Specifications" table of the case (maximum length of the graphics card) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main manufacturer of the graphics card

By referring to the technical "Specifications" table of the case (maximum cooling height and the possibility of installing water cooling) and matching the number entered in the technical specifications table with the dimensions mentioned by the main cooler's manufacturer

By referring to the technical "Specifications" table of the case (maximum power length) and matching the number inserted in the technical specifications table with the dimensions mentioned by the main power manufacturer

By referring to the table of technical "Specifications" and matching the number entered with the desired number of storage devices

* The physical aspect of Case's warranty:
As you know, physical damage to any piece of hardware will not be covered by the warranty, and the physical warranty of the case is only for new products and before the system assembly. Therefore, it is recommended that you take a physical look at the case in the presence of the seller and make sure that its appearance is fine.

* Warranty of electronic and mechanical parts of the case:
However, you may not be able to make sure that some of the electronic and mechanical components of the case are in good condition by observing them. Therefore, all electronic components of GREEN cases, including USB and Audio ports, as well as mechanical components, including pre-installed fans of the case, will be covered by the GREEN Warranty for a period of 24 months from the date of manufacture. It should be noted that the warranty of these electronic and mechanical parts will not include their physical damage.

Due to the impossibility of investigating the problem that has arisen in the company's internal transportation system or by the esteemed buyer, it is definitely recommended to take a closer look at the case in the presence of the seller and make sure of the appearance of its body. Otherwise, providing services to physically damaged cases will involve cost and possibly time due to supply the part.

To install the fans by default on the case by GREEN is correct, but if you want to move or add a fan to the case, it is necessary to pay attention to the following points:
* To enter the cool air from the front, it is on the main door of the case and the bottom of the case
* For hot air outlet from the back and roof of the case
* In all standard fans, on the back of the fan, where the label of technical specifications and the name of the fan are mentioned, which is the output and direction of the fan flow in this direction.

In general, there are three types of sockets for connecting case fans:
a) 3-pin socket
b) 4-pin PWM socket
c) 4-pin Molex socket
The 3-pin and 4-pin PWM sockets must be connected to your motherboard, or if there is a controller fan on the case, it must be connected to the case controller fan, and in these two models it is possible to control the fan speed by the motherboard or the controller fan.
The 4-pin Molex model connects directly to the system power supply and it is not possible to control the fan speed

In this video, the reasons and solutions to solve this problem are fully explained:

https://www.aparat.com/v/1gxWG

If you encounter a special case in which you could not choose the right case, you can call +982188911378 (ext. 7551 to 7555) and our experts will answer your questions in this regard.
