NOTUS 100-PWM

The NOTUS 100-PWM air cooler is aimed at the market for those users who want to get rid of the loud noise of stock fans at the lowest possible cost, as well as experience much better cooling performance. The most important features of this model are 2 copper heat pipes with a diameter of 6mm, more than 37 aluminum fins, a 100mm low noise 2100RPM fan, along with low weight and quick and easy installation.

  •     Suitable for gaming and home systems
  •     Equipped with 2 Heat-pipes with a diameter of 6mm
  •     Heat-Pipe Direct Touch (HDT) technique for faster heat transfer
  •     Has a very low fan 2100RPM equipped with a Hydraulic Bearing core
  •     Has the ability to easily remove the fan blade
  •     Small size with the ability to install in most standard ATX cases
  •     Ultra-low fan noise
  •     Low weight and quick and easy installation
  •     Comes with a 1.5 gram tube of GREEN GT-4 Premium thermal paste
  •     Equipped with 4Pin fan connector and using PWM technique to control fan speed
  •     Compatible with most processor sockets on Intel and AMD platforms



The NOTUS 100-PWM air cooler, while small and affordable, easily handles the heat dissipation of most mid-range processors on the market.

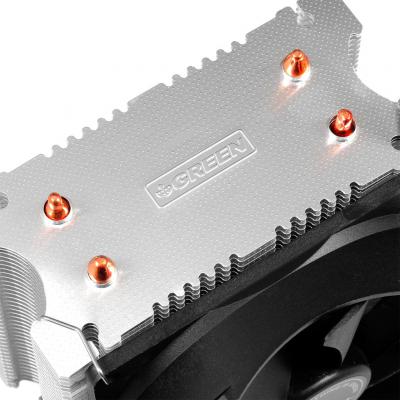

The heatsink design of this air conditioner is such that through 37 aluminum fins, the heat absorbed by 2 U-shaped copper pipes with a diameter of 6mm is expelled from the processor surface by means of a 100mm PWM fan of the Hydraulic Bearing type. The fan, which operates at a maximum speed of 2100RPM, with its High-Flow blade design, is capable of producing an airflow of 54.5CFM and produces only 23dBA of audio noise at a maximum rotation speed.


کولر نوتوس 100 گرین notus_100_pwm

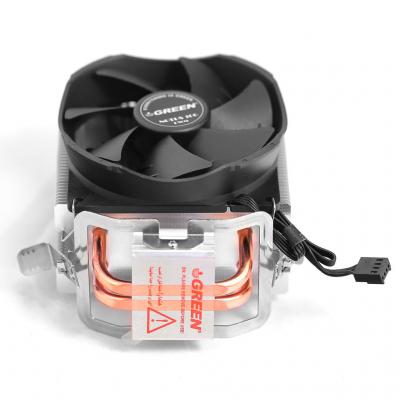

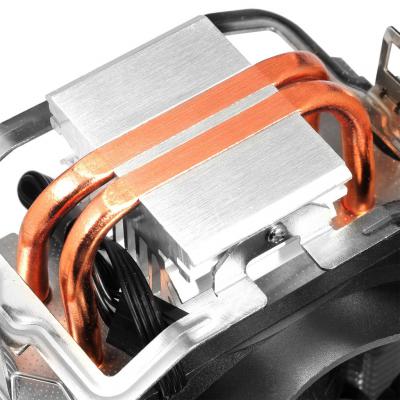

Among the features of this air cooler in this price range, we can mention the base (HDT) type Heat-Pipe Direct Touch. As a result, the heat absorbed from the IHS surface of the processor is transferred directly to the heat pipes and in practice significantly increases efficiency The cooler becomes.

Other strengths of this affordable air cooler include its very low weight of 340 grams along with its very simple and fast installation. In other words, the techniques for installing this low-weight air conditioner ensure the health of the motherboards and processors of the new Skylake platform, even in the worst possible conditions.

Comparison table of technical specifications of NOTUS series coolers

Physical Specification
Cooling Family Air Cooler
Model NOTUS 100-PWM
Series NOTUS
Heat-Sink Type Heat-Pipe CPU Cooler
Heat-Sink Dimensions 103mm x 49mm x 130mm
Overall Dimensions 103mm x 73mm x 130mm
Heath-Sink Weight 255 Gram
Overall Weight 340 Gram
Number, Type and Diameter of the Heath-Pipes 2x 6mm U-Shaped
Number of Blades and Heat-sink Alloy 37x Pure Aluminum Fins
Heat-sink Surface Technology (Heat-Pipe Direct Touch (HDT
Fan Specifications
Fan Dimensions 100mm x 25mm x 100mm
Fan Speed 1000-2100RPM ±5%
Max Fan Air Flow 54.5CFM
Fan Noise 20-23dBA ±5%
Fan Bearing Hydraulic Bearing
Detachable Fan Blades Yes
Fan RPM Control PWM
Fan Connector Type 4Pin PWM
Fan Voltage Range 6V-13.2V
Thermal Paste Specifications
Thermal Grease Type & Weight (GT-4 PREMIUM / 0.5ml (1.5g
Socket Support
Intel Sockets LGA775 , LGA1150 , LGA1151 , LGA1155 , LGA1156 , LGA1200
AMD Sockets AM4 , AM3/+ , AM2/+ , FM1 , FM2/+
TDP Support 100W
Warranty and After-sales Service
Warranty Period 24 Mounths

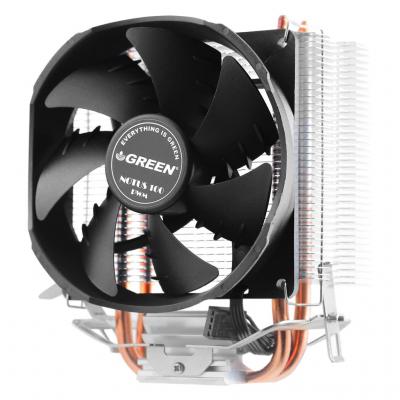

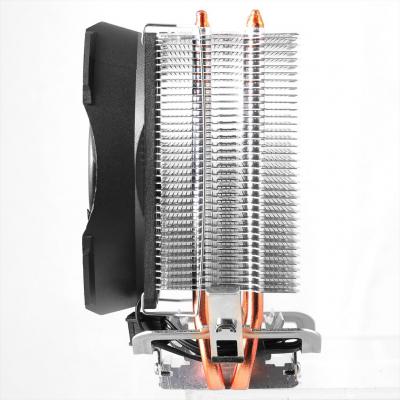

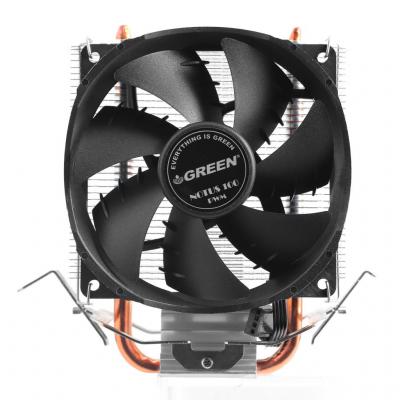

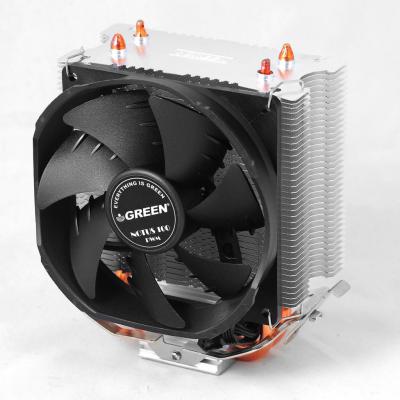

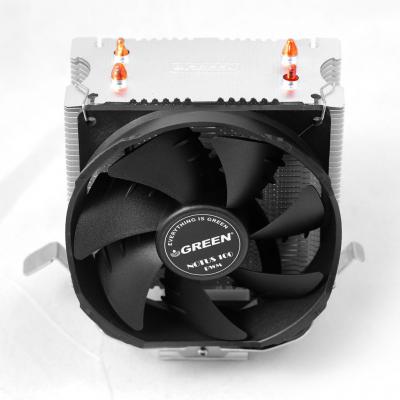

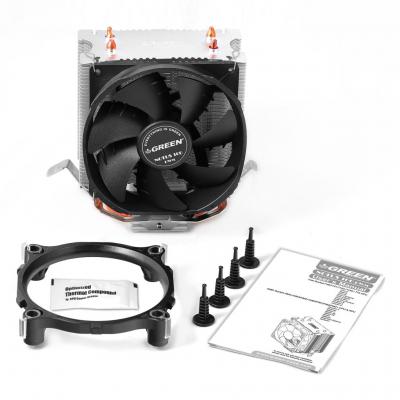

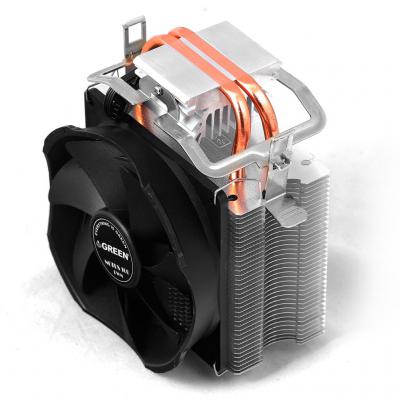

NOTUS 100-PWM Gallery
