GX622S

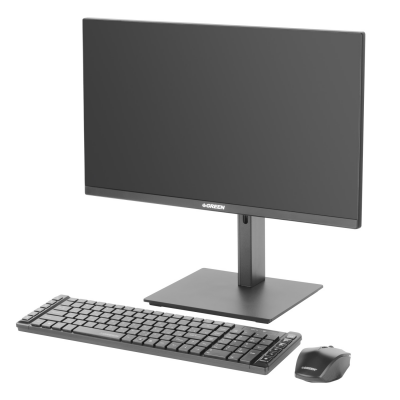

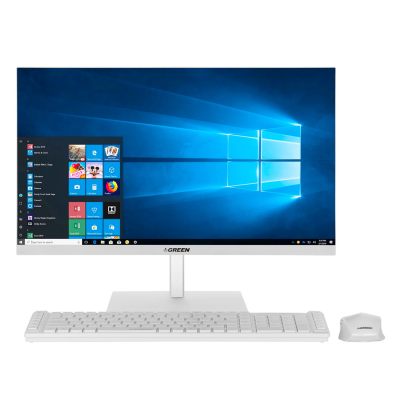

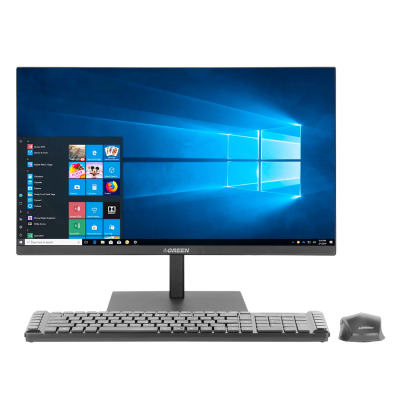

With the GREEN All-in-One PC (All in One), you'll experience the performance of powerful desktop systems in the least amount of space possible. A 22-inch display with FHD (Full HD) image resolution, an eye-catching and compact design, a movable stand that can be adjusted in four directions in the same way as a wireless keyboard and mouse, and support for a wide range of storage and I/O equipment are just a few of the features.

  • Extremely eye-catching and compact design that makes the desk quieter
  • Possibility to upgrade the processor (CPU), RAM memory and storage equipment
  • It is equipped with a Full HD display with 1920x1080 resolution and a VA panel with a wide viewing angle
  • Carrying a wireless ergonomic keyboard and mouse
  • The movable base can be adjusted in four different directions
  • Wireless network module (Wi-Fi 6) type (802.11b/g/n/ac/ax Dual Band (up to 1200Mbps)
  • Wireless network module (Wi-Fi) support of MU-MIMO and OFDMA technologies
  • It is equipped with a Bluetooth 4.2 module with the ability to support the Bluetooth Low Energy (BLE) protocol
  • Motherboard equipped with H610 chipset with support for 12 generation and Pentium Gold Intel processors (LGA1700)
  • Support for 2 RAM slots with the ability to load up to 64GB of dual-channel DDR4-3200Mhz memory
  • It has 2 USB3.2 Gen2 ports (10Gbps), HDMI 2.1 video output, and "HDD/SSD 2.5" installation.
  • It is possible to install high-speed storage equipment with a PCIe 4.0 x4 type 2260/2280 interface.
  • Low noise noise thanks to CPU cooler equipped with 4 direct-contact copper heatpipes
  • Complete isolation of the monitor image output from the electromagnetic waves of the internal components
  • Equipped with a 150 W power supply with a Level VI energy consumption efficiency
  • It has two speakers with 3W RMS output power
  • Fully compatible with Windows 10/11 operating systems
  • 2 Years warranty

See more!



The 21.5" display of this device is capable of providing a nominal contrast of 3000:1 thanks to the panel with VA technology, creating a stylish, eye-pleasing and compact combination with a screen-to-body ratio of over 92%. This has led to the dimensions of this device. It looks like a 20" monitor! In addition, thanks to the 1920x1080 FHD resolution of this screen and the optimized color richness, all the details of the images will be shown in the highest possible quality.

2 mm margin
92
% Screen/body
VA Panel
178°
Viewing angle
FULL HD
1920x1080
resolution

Eye-catching and compact design

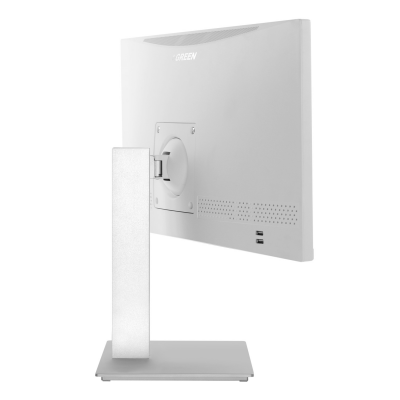

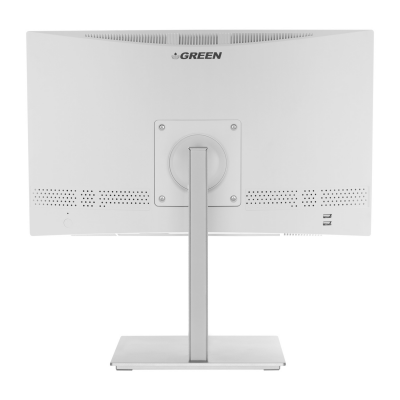

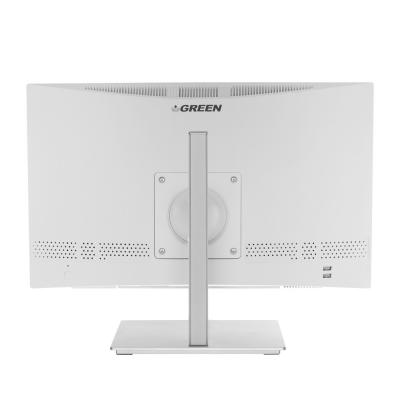

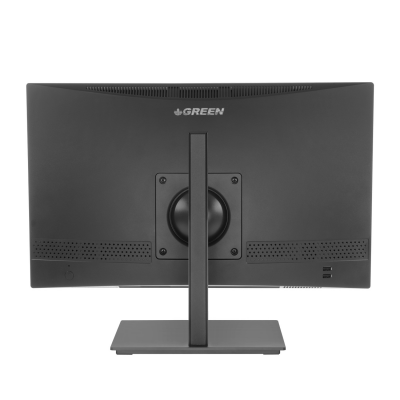

In the design of the computer body of this series, an attempt was made to increase the attractiveness of the product by adding a curve to the rear of the body. In addition, the metal base of the device is designed in such a way that in addition to visual beauty, it increases the stability of the device and its stabilization at different levels.

Two different colors for different tastes

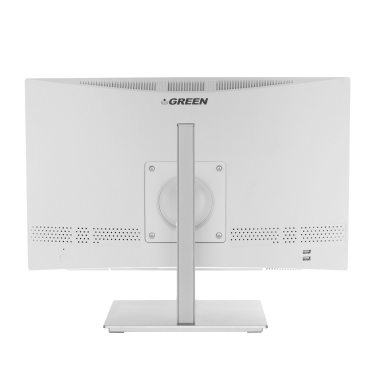

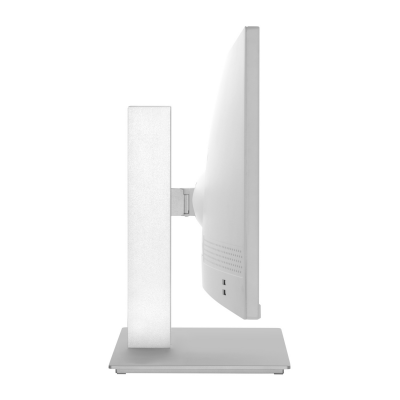

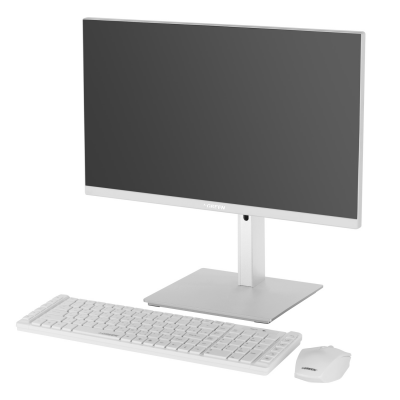

This model is available in black and white. These two different colors will help you choose the best color that will maintain the harmony of colors according to your personal tastes, the theme of your table or the décor of your room.

Low thickness next to adjustable screen angle

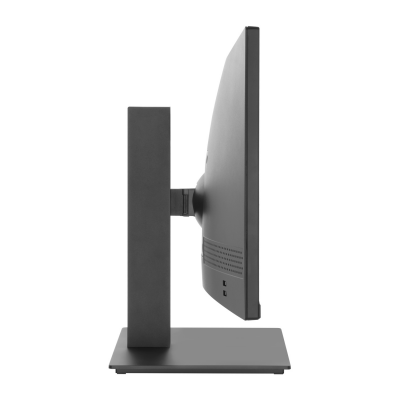

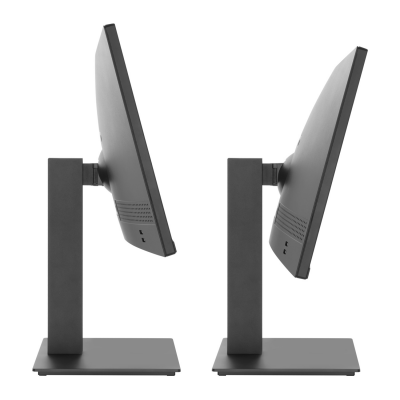

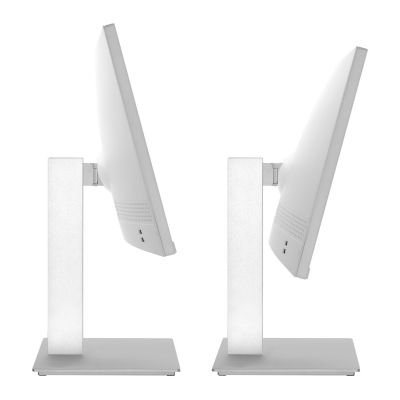

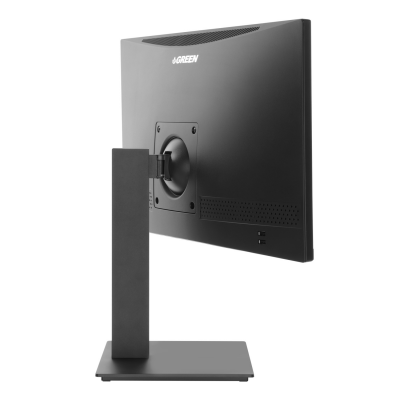

The hull depth in this series is only 62 mm. These dimensions take up the same space as a monitor of the same category. As a result, there will be no restrictions on the installation of this device on busy tables and limited space. In addition, thanks to the installation of an extremely durable metal hinge on the base of this device, the viewing angle of the screen can be adjusted in the range of approximately 25 degrees.

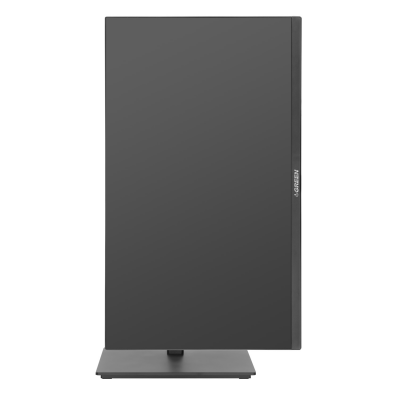

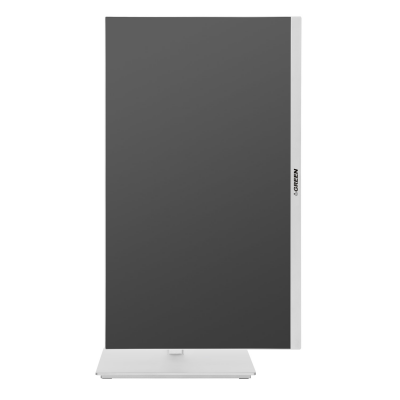

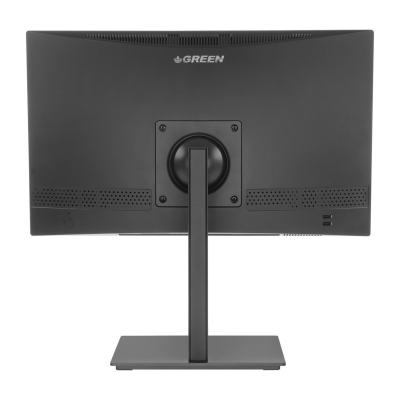

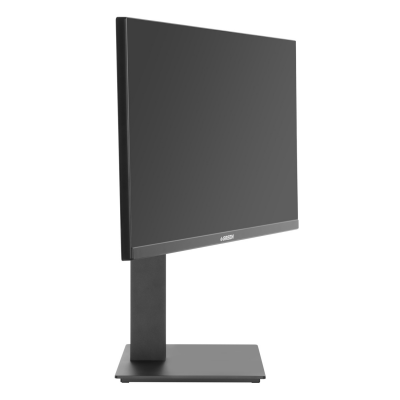

For the user, it is possible to adjust the height of the screen by 80 mm, as well as the possibility of rotating the screen by 90 degrees.

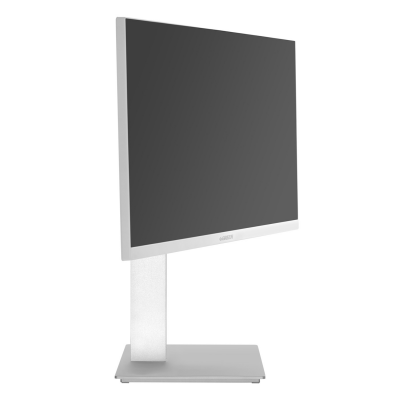

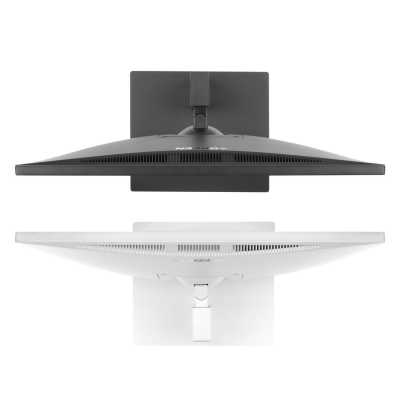

Possibility of lateral rotation up to a total of 60 degrees in both directions for the convenience of users

Be the Architect of Your Own All in One PC

Core i3/i5/i7
12. Nesil ve Pentium Gold
Intel® CPU
64 GB'a kadar
SO-DIMM DDR4
2666/3200MHz
M.2 Soket 3
Tip 2260/2280
PCIE4.0x4
150W Adapter
Power supply
Efficiency Level VI

Support for powerful desktop processors



In this series, unlike most similar models, the installation of all kinds of 12th generation Intel Core i3/i5/i7 and Pentium Gold desktop processors (with a maximum TDP limit of 65W) is possible. For example, by installing the Intel Core i7-14700 processor (20Core/28Threads) with 64GB DDR4 RAM memory, you will experience extremely high performance in engineering software, design, 2D, 3D graphics, etc.

WiFi 6 (802.11ax) + Bluetooth 4.2



Thanks to the Intel Wi-Fi 6 AX201 wireless module, wireless communication technologies (WiFi 802.11ax (2.4/5GHz and Bluetooth 5.2) are provided for this device. Extremely fast connection (1200Mbps) and very little interruption Low, highly effective operating range , Wireless Display, MU-MIMO, OFDMA support as well as complete security in sending and receiving information are the most prominent features of these communication technologies.

Stereo speakers equipped with a 6W amplifier

This device is equipped with two stereo speakers, the real power of which is 2x3W RMS. Thanks to the clear and crystal sound of these speakers, in addition to the intelligent function of the amplifier of this sound system, there will be no distortion in the output even at maximum volume, so that vivid, clear and high-resolution sound is always transmitted to the listener's ears.

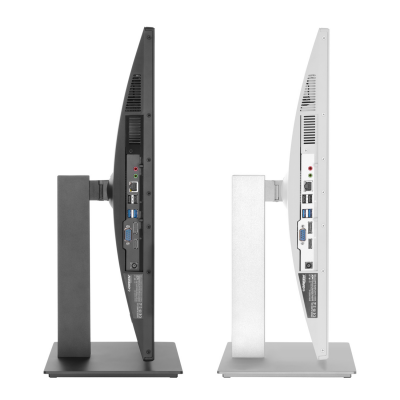

A wide range of high-speed and modern connections



This series is equipped with a variety of high-speed and modern input and output ports. These ports include USB 3.2 Gen2 (10 Gbps), USB 2.0, Gigabit LAN and HDMI 2.1, as well as DisplayPort 1.4 video outputs. In addition, a COM port has been considered for some special applications, so that there are no limitations on the connection of old or industrial equipment to this device.

Physical Specifications
Model GX422S-i718S
Dimensions 361.54mm x 490.3mm x 61.66mm
Weight 5250g
OS Support Windows 10/11
Screen
Screen Size &Type 21.5inch (VA Panel)
Screen Resolution 1920x1080 @ 60Hz
Viewing Angle H:178 V:178
Hardware Specifications
Form Factor Thin Mini-ITX
Motherboard Chipset Intel H410
CPU Socket Intel LGA 1200
CPU Family Intel Core i7
CPU Model Spec Intel Core i7 10700 (Max 4.8GHz) - 8C/16T
GPU Model Spec Intel UHD Graphics 630
CPU Cooling Fan Heat-Pipe CPU Cooler
Memory Size 8GB DDR4
RAM Size Non-ECC, Un-buffered DDR4 SO-DIMM Memory (2400/2666MHz) - Max 64GB
Storage
Storage Types 1TB HDD + 240GB M.2 NVMe SSD
HDD Storage 2.5Inch -SATA III 5400RPM
SSD Storage M.2 Socket 3, with M Key, Type 2260/2280 (SATA/PCIe 3.0)
Audio
Audio Codec Realtek ALC887 High Definition Audio CODEC
Speaker Type 2x 3W High Fidelity Stereo Speaker
Network
Wi-Fi Spec (802.11b/g/n/ac Dual Band Frequency 2.4/5.0GHz (Up to 433Mbps
Bluetooth Yes (Bluetooth 4.2 + LE)
LAN Spec 1x 10/100/1000M Gigabit Ethernet
Keyboard & Mouse
Interface Wireless
Connection Type 2.4GHz (RF) + Nano Receiver
Number of Keyboard Button 117
Number of Mouse Button 5
DPI 800/1200/1600DPI
Mouse Polling Rate 250Hz
Input & Output Ports
USB 2x USB3.2 Gen1 , 2x USB 2.0
USB HUB 2x USB 2.0
Audio Port (Audio in / out (3.5mm jack
Video Outputs (HDMI 1.4b (Max Resolution: 4096 x 2160) @24Hz , DisplayPort (Max Resolution: 4096 x 2304 @60Hz
COM Port (9Pin)
Power Supply
Mouse Power Supply (Adapter 19V / 7.8A (150W
Warranty and After-sales Service
Warranty Period 2 years warranty

GX622S Gallery

Driver and Launcher (Windows 10 64-bit)
ASUS AI Suite V3.00.51
Software for controlling and monitoring various device parameters
Size : 165MB
Download

For information about the list of compatible equipment with this device, refer to the product download section and the "List of compatible equipment" sub-section.

This problem is related to the device Bios settings. To solve the problem while turning on the device, enter the device's Bios environment by pressing the Delete key. Then press the F5 key and confirm the displayed message to call up the default settings. Finally, press F10 to save the default settings and exit the Bios environment.

This problem is related to the device Bios settings. To solve the problem while turning on the device, enter the device's Bios environment by pressing the Delete key. Then press the F5 key and confirm the displayed message to call up the default settings. Finally, press F10 to save the default settings and exit the Bios environment.

The reason for this problem is the limitations on the new generation of Intel chipsets. Only versions of Windows 7 that have the appropriate drivers will be installed on this device. For this, use the Windows 7 image uploaded in the "Download" section of the product and the "Windows 7 Installation Tool" section under "Windows 7 Ultimate SP1 64-Bit MSDN".

The reason for this problem is the limitations on the new generation of Intel chipsets. Only versions of Windows 7 that have the appropriate drivers will be installed on this device. For this, use the Windows 7 image uploaded in the "Download" section of the product and the "Windows 7 Installation Tool" section under "Windows 7 Ultimate SP1 64-Bit MSDN".

This dongle, which connects the device's keyboard and mouse, is embedded inside the device's mouse battery compartment.
