NOTUS 400-ARGB

NOTUS 400-ARGB Green body cooler based on 4 copper heat pipes with a diameter of 6mm and contact technique (Heat-Pipe Direct Touch (HDT), more than 48 black anodized aluminum blades, powerful 1800RPM fan, extremely quiet and durable, ARGB lighting The Infinity Mirror fan and upper part, along with light weight and easy installation, will be ready to host the most modern gaming desktop and server processors in the market today.

  • Suitable for gaming systems, servers
  • Equipped with 4 Heat-pipes with a diameter of 6mm
  • Tower equipped with 48 black anodized aluminum blades
  • Having direct contact technique (Heat-Pipe Direct Touch (HDT) for faster heat transfer
  • It has a powerful 120mm 1800RPM fan equipped with a Hydro Bearing core
  • Having an additional bracket to install the second fan
  • Cooler fan and ceiling equipped with ARGB type lighting with Infinity Mirror effect
  • Equipped with an internal lighting controller (ARGB) with the ability to synchronize with the motherboard (MB Sync)
  • Super low fan noise
  • It has a fan equipped with silicone pads to neutralize the smallest possible vibration or noise
  • Light weight and easy installation
  • Including a tube of 1.5 grams of super thermal paste with GT-6 Green quality
  • Equipped with 4Pin fan connector and using PWM technique to control the fan speed
  • Compatibility with all modern processor sockets of Intel and AMD platforms



Attractive, efficient and compatible with modern platforms


NOTUS 400-ARGB Green body cooler based on 4 copper heat pipes with a diameter of 6mm and contact technique (Heat-Pipe Direct Touch (HDT), more than 48 black anodized aluminum blades, powerful 1800RPM fan, extremely quiet and durable, ARGB lighting The Infinity Mirror fan and upper part, along with light weight and easy installation, will be ready to host the most modern gaming desktop and server processors in the market today.



Built-in ARGB lighting with the ability to synchronize with the motherboard

The fan and the upper part of the Notus 400-ARGB green processor cooler are equipped by default with an internal ARGB lighting controller with a rainbow effect. In addition, fully automatic synchronization (MB Sync) is also considered for this cooler, and as soon as the 3Pin ARGB (5V) connector of this cooler is connected to compatible motherboards, internal lighting will be disabled and synchronization with the motherboard will be activated.

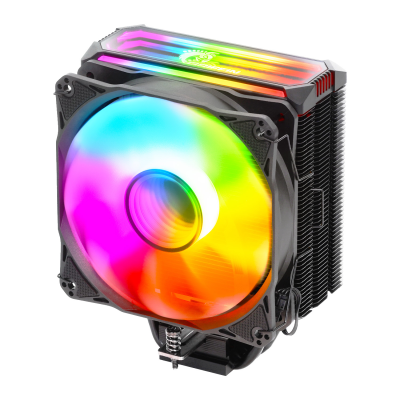

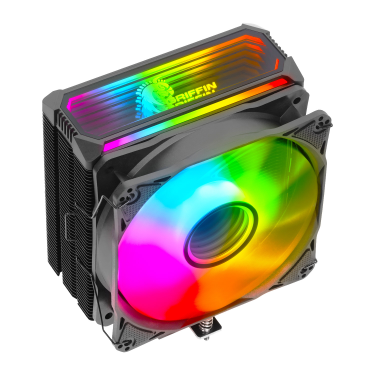

ARGB lighting with infinity mirror view


ARGB lighting with an infinite mirror (Infinite Mirror) in the central part of the fan and the upper part of this cooler will undoubtedly be the turning point of your gaming system's charm!



Extremely durable and quiet fan

This cooler is equipped with a PWM fan with a Hydro Bearing core, ARGB lighting with an "infinity mirror" view, and a speed in the range of 600-1800 rpm. The maximum air flow of 70 CFM, the maximum sound noise of 28 dB(A) in addition to the installation of anti-vibration pads in all areas of contact between the fan and the cooler are among the special features of this extremely durable and low-noise fan.

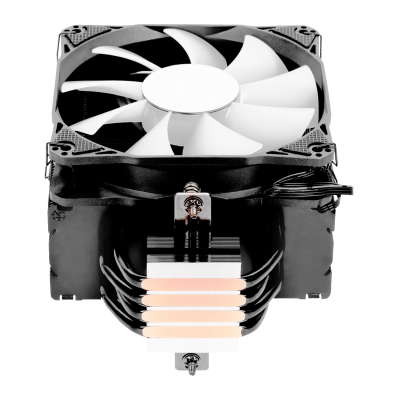

4 copper heat pipes with a diameter of 6mm anodized with black color

In this cooler, the heat is transferred to more than 48 black anodized aluminum blades as quickly as possible by 4 copper heat pipes with a diameter of 6mm, which are in direct contact with the processor surface with the Heat-Pipe Direct Touch (HDT) technique and by The air flow created by the cooler fan is rejected. Numerous optimizations implemented in the design department, the efficiency of the heat pipes and the color anodizing technique in this cooler have made its efficiency close to that of liquid coolers (water cooling) equipped with a 120mm radiator. In fact, this powerful cooler has the potential to dissipate heat up to a maximum of 200W TDP of modern processors.

Optimized for maximum compatibility

This cooler, with a height of 160mm and a width of only 76mm, will be compatible with most of the cheap and mid-range cases in the market, and it will not interfere with the installation space of the RAM memory modules on the motherboard. Also, thanks to the net weight of less than 650 grams, under no circumstances will it cause a challenge even for cheap motherboards equipped with a thin PCB.

Support for all modern platforms

To install this cooler, all-metal brackets and connections are used, which are extremely durable and of high quality. These brackets have made it possible to install this cooler on all modern sockets based on AMD and Intel processors. Also, thanks to the installation of an additional pair of clamps in the contents of the box, the ability to install a second fan is also provided for this air cooler.

Physical Specification
Cooling Family Air Cooler
Model Notus 400-ARGB
Series NOTUS
Heat-Sink Type Heat-Pipe CPU Cooler
Heat-Sink Dimensions 131mm x 51mm x 160mm
Overall Dimensions 131mm x 76mm x 160mm
Heath-Sink Weight 557
Overall Weight 650
Number, Type and Diameter of the Heath-Pipes 4x 6mm U-Shaped
Number of Blades and Heat-sink Alloy 48x Pure Aluminum Fins
Heat-sink Surface Technology (Heat-Pipe Direct Touch (HDT
Fan Specifications
Fan Dimensions 120mm x 25mm x 120mm
Fan Lighting ARGB
Fan Speed 600-1800RPM ±10%
Max Fan Air Flow 70CFM
Fan Noise 16-28dBA±10%
Fan Bearing Hydro Bearing
Detachable Fan Blades Yes
Fan RPM Control PWM
Fan Connector Type 4Pin PWM
Fan Voltage Range FAN: 12V / 0.27A | ARGB: 5V / 0.35A + 0.13A (Top Light)
Thermal Paste Specifications
Thermal Grease Type & Weight (GT-6 / 0.5ml (1.5g)
Socket Support
Intel Sockets LGA1150 , LGA1151 , LGA1155 , LGA1366 , LGA2011 , LGA2066 , LGA1200 , LGA1700
AMD Sockets AM4 , AM3/+ , AM2/+ , FM1 , +/FM2 , AM5
TDP Support 200W
Warranty and After-sales Service
Warranty Period 24 Months

NOTUS 400-ARGB Gallery

User manual and documentation
GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB
Download

Note that this fan supports the PWM technique for speed control. Make sure PWM capability is enabled in the motherboard BIOS for the desired fan socket.

The lighting controller is not installed in the accessories that come with this fan. To activate RGB lighting, the system motherboard must be equipped with a 4GB (12V) RGB socket. It will also be possible to set up RGB lighting using 4GB (12V) RGB side controllers.

RGB lighting The GF120-RGB fan is compatible with all motherboards equipped with 4Pin (12V) RGB sockets.
