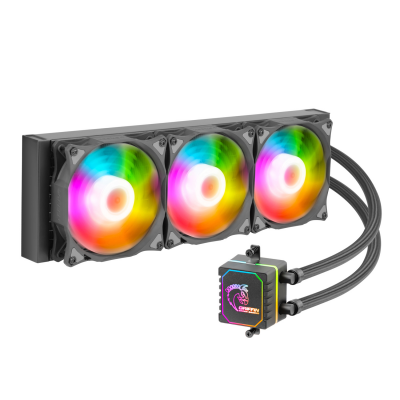

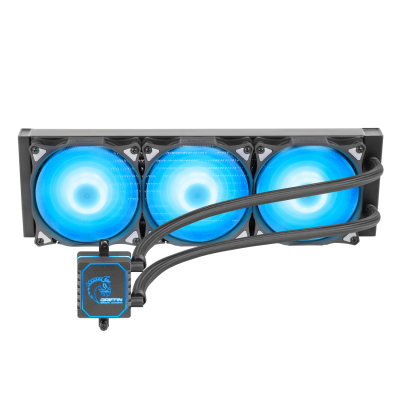

GLACIER 360 ARGB

The synchronization capability of this cooler is compatible with motherboards that have a 3Pin ARGB header (most motherboards like GIGABYTE, ASUS, MSI, ASRock) with a 5V digital addressable RGB header.

No, the 4Pin RGB header has an analog signal and 12V output voltage and are not compatible with the lighting controller of this cooler. The ability to synchronize the lighting of this cooling controller is only compatible with systems or motherboards with 3Pin ARGB sockets with 5V voltage of digital or Addressable RGB type.

No. In this case, it is recommended to connect the ARGB water block connector and fans directly to the motherboard header for synchronizing the lighting of all parts of the system.

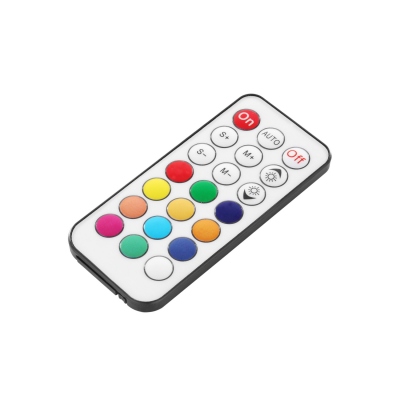

To adjust the speed of the lighting effects, you must first stop the lighting effect cycle (press the on button)

To solve this problem, first, turn off all coolers. Then turn on the first cooler, then press the magenta button and hold it (bottom left button) for 5 seconds, from now on the cooler will be paired only with the same remote control. To deactivate this mode, just press the white button and hold for 5 seconds

If the remote control battery is in good condition, its operating range will be approximately within 10 meters.

Dear customer, while thanking you for your choice, this product is supported by the guarantee of GREEN, and the damages caused by the technical defects of the device, the materials used and the defects caused by the production,
They are included in the Green Warranty for 18 months.

• Please bring the box and all accessories of it with you when you visit.

• Any change in the main specifications, opening of the water block or transfer pipes of the device by unauthorized persons, damage to the connectors, and damage to the device serial; Will void the warranty.

• Any attempt to replace, increase or decrease the coolant will invalidate the warranty.

• If the warranty conditions are provided, this device will be repaired or replaced with a "brand-new" device at the discretion of the warranty experts.

• Due to the rapid change and evolution of computer parts, in the absence of the original model of the device, a similar device model and taking into account the current price, will be presented.

• This warranty only includes the water cooling device and in case of damage to other parts of the system, the GREEN Warranty will not be responsible.

• If your motherboard has a 4Pin socket called "Pump_Fan" or "AIO_Pump":

- Connect the 3Pin Waterblock socket to the "Pump_Fan" or "AIO_Pump" socket and the fans to the CPU_fan socket through the 1 to 2 conversions in the contents of the box (for models equipped with 240 / 360mm radiator).

• If your motherboard does not have a 4Pin socket called "Pump_Fan" or "AIO_Pump":

- Connect the 3Pin water block socket to the SYS_Fan or CPU_OPT socket and the fans to the CPU_Fan socket through the 1 to 2 conversions in the contents inside the box (for models equipped with 240 / 360mm radiator).

Since it is recommended to always set the rotation speed of the pump to the maximum for the best performance, most water cooling systems on the market have a pump with a 3Pin socket. Connecting 3Pin connectors to 4pin sockets is completely standard and only the PWM control feature will be disabled so the pump will always run at maximum speed.

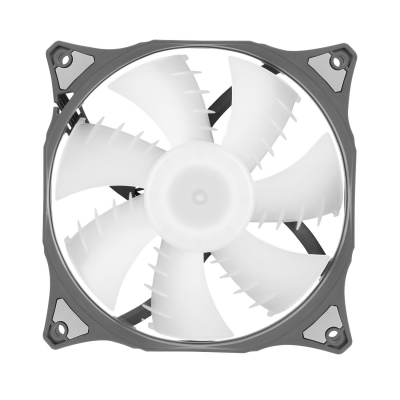

GREEN water cooling fans are PWM type and can be controlled even with DC Voltage control technique. To do this, enable features such as Q-Fan or Smart Fan in your motherboard Bios settings.

• If you install the water cooling radiator on the roof or rear tray of the case:

- The fans should direct the air to the radiator and hot air should come out of the ceiling or behind the case.

• If you install the water cooling radiator on the front tray of the case:

- Fans must suck air from the outside to the inside of the radiator.
