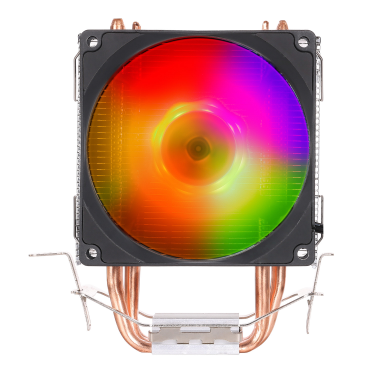

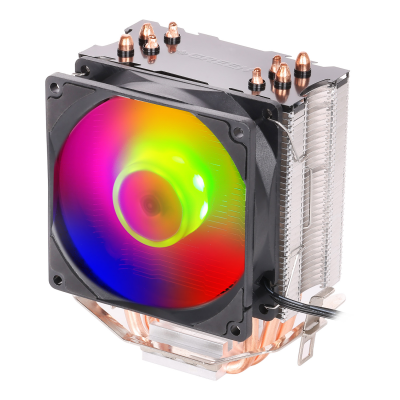

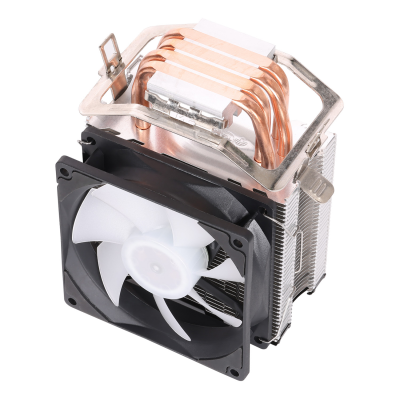

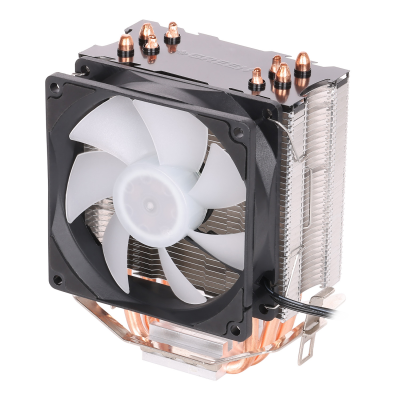

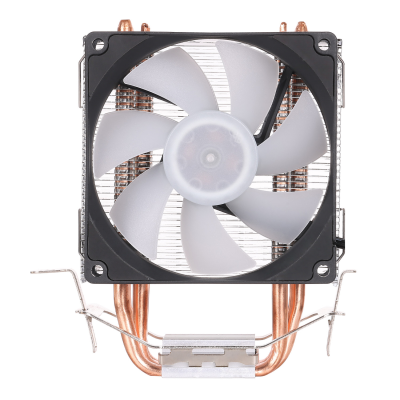

NOTUS 100-ARGB

NOTUS 100-ARGB Green cooler, 4 x 6mm diameter copper tubes and Heat-Pipe Direct Touch (HDT) technique, 92mm ultra-low noise and durable 2400RPM fan, ARGB lighting with motherboard synchronization, and all available sizes, light weight and easy installation, the NOTUS 100-ARGB Green Air Cooler will be ready to accommodate the most modern desktop processors on the market right now.

  • Suitable for gaming systems, servers
  • Equipped with 4 Heat-pipes with a diameter of 6mm
  • Tower equipped with 48 black anodized aluminum blades
  • Having direct contact technique (Heat-Pipe Direct Touch (HDT) for faster heat transfer
  • It has a powerful 120mm 1800RPM fan equipped with a Hydro Bearing core
  • Having an additional bracket to install the second fan
  • Cooler fan and ceiling equipped with ARGB type lighting with Infinity Mirror effect
  • Equipped with an internal lighting controller (ARGB) with the ability to synchronize with the motherboard (MB Sync)
  • Super low fan noise
  • It has a fan equipped with silicone pads to neutralize the smallest possible vibration or noise
  • Light weight and easy installation
  • Including a tube of 1.5 grams of super thermal paste with GT-6 Green quality
  • Equipped with 4Pin fan connector and using PWM technique to control the fan speed
  • Compatibility with all modern processor sockets of Intel and AMD platforms

Physical Specification
Cooling Family Air Cooler
Model Notus 100-ARGB
Series NOTUS
Heat-Sink Type Heat-Pipe CPU Cooler
Heat-Sink Dimensions 102mm x 50mm x 135mm
Overall Dimensions 102mm x 75mm x 135mm
Heath-Sink Weight 275
Overall Weight 650
Number, Type and Diameter of the Heath-Pipes 4x 6mm U-Shaped
Number of Blades and Heat-sink Alloy 38x Pure Aluminum Fins
Heat-sink Surface Technology (Heat-Pipe Direct Touch (HDT
Fan Specifications
Fan Dimensions 92mm x 25mm x 92mm
Fan Lighting ARGB
Fan Speed 600-2400RPM ±10%
Max Fan Air Flow 42CFM
Fan Noise 16-28dBA±10%
Fan Bearing Hydro Bearing
Detachable Fan Blades Yes
Fan RPM Control PWM
Fan Connector Type 4Pin PWM
Fan Voltage Range FAN: 12V / 0.27A | ARGB: 5V / 0.35A + 0.13A (Top Light)
Thermal Paste Specifications
Thermal Grease Type & Weight (GT-6 / 0.5ml (1.5g)
Socket Support
Intel Sockets LGA1150 , LGA1151 , LGA1155 , LGA1366 , LGA2011 , LGA2066 , LGA1200 , LGA1700
AMD Sockets AM4 , AM3/+ , AM2/+ , FM1 , +/FM2 , AM5
TDP Support 200W
Warranty and After-sales Service
Warranty Period 24 Months

NOTUS 100-ARGB Gallery

GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

Note that this fan supports the PWM technique for speed control. Make sure PWM capability is enabled in the motherboard BIOS for the desired fan socket.

The lighting controller is not installed in the accessories that come with this fan. To activate RGB lighting, the system motherboard must be equipped with a 4GB (12V) RGB socket. It will also be possible to set up RGB lighting using 4GB (12V) RGB side controllers.

RGB lighting The GF120-RGB fan is compatible with all motherboards equipped with 4Pin (12V) RGB sockets.
