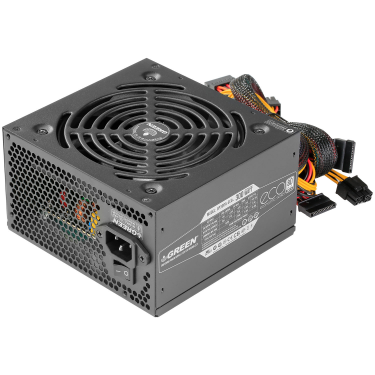

GP300A-ECO Rev3.1

The central feature of the ECO GREEN series power supplies is their excellent price-performance ratio. In fact, this series is aimed at those users who, even with a limited budget; intend to buy a standard power supply with a valid warranty service.

  • Suitable for home/office applications
  • Ability to provide rated power capacity even in ambient temperature up to 40C
  • Has a power factor correction circuit (Active PFC) with performance higher than 0.90 in load conditions of 20% to 100%
  • Benefits of SamXon 1st-grade 85°C capacitor in the primary section
  • Use of CLC filters to improve accuracy in voltage regulation and reduce output ripple
  • High energy efficiency in accordance with the 80Plus standard
  • Has a power consumption of less than 0.5W in Stand By mode in accordance with the latest ErP load corrections 2013
  • Hold-Up Time at least 12ms even at 100% load
  • The system has a two-stage EMI filter in the input section to refine the input power as much as possible
  • Extremely quiet fan with smart performance
  • 3 years warranty and 5 years after-sales service





When even at the lowest cost, you can get a standard power supply





Super value for money

The pivotal feature of the ECO series power supplies is their outstanding performance-to-price ratio. In fact, this series is aimed at those users who, even with a limited budget, intending to buy a standard power supply with a valid warranty and after-sales service.





Maximum Energy Efficiency of 85%

Having quality parts and materials along with Forwarding-topology and the process of manufacturing plus fully automatic quality control together has increased the efficiency of this series up to a maximum of 85% beyond the 80PLUS's Standard for this series. This has reduced energy consumption losses, reduced heat-output, and resulted in a completely silent performance.





Active PFC power factor correction

Despite the numerous nonlinear elements in switching power supplies, the need to install power factor correction (PFC) systems, in addition to reducing energy consumption losses, also reduces the user's power consumption costs. Thanks to the APFC circuit used in the input section of the ECO series power supplies, the power factor will be about 0.9 or more at a load of more than 20%.





Including ErP Standard 2013 For This Series

Switching power supplies always consume a small amount of power as long as they are connected to the city power supply due to the 5V Standby circuit, even when they are off. In power supplies equipped with a standby circuit with controlled and modern consumption, this rate is much lower. ECO series power supplies have less than 0.4W consumption in this situation, which is unique in this price range.





First-Grade Capacitors Made by SamXon

Quality capacitors always play a decisive role in increasing the life and voltage stability of the output rails. The 400W / 350W / 300W ECO Rev3.1 Green series power supplies are equipped with high-quality 85°C capacitors in the input section, made by the well-known company SamXon. These capacitors have a much longer life than similar models due to the modern manufacturing process and first-class materials used.





Stable performance even in 40°C environment

Optimized design and quality materials and components have made the ECO GREEN series power supplies, even at ambient temperatures of 40°C, have the ability to provide their rated power in a completely stable and guaranteed way.





Hold-Up Time at least 12ms in 100% load

Receiving from a quality input capacitor (Bulk) with suitable capacity in ECO powerheads causes the hold-up time interruption time (Hold-Up Time) to be approximately 12ms even at maximum output power. This interruption tolerance ensures the guaranteed performance of this series in unstable power conditions of the city and also provides compatibility of slow-acting UPSs with ECO series power supplies.

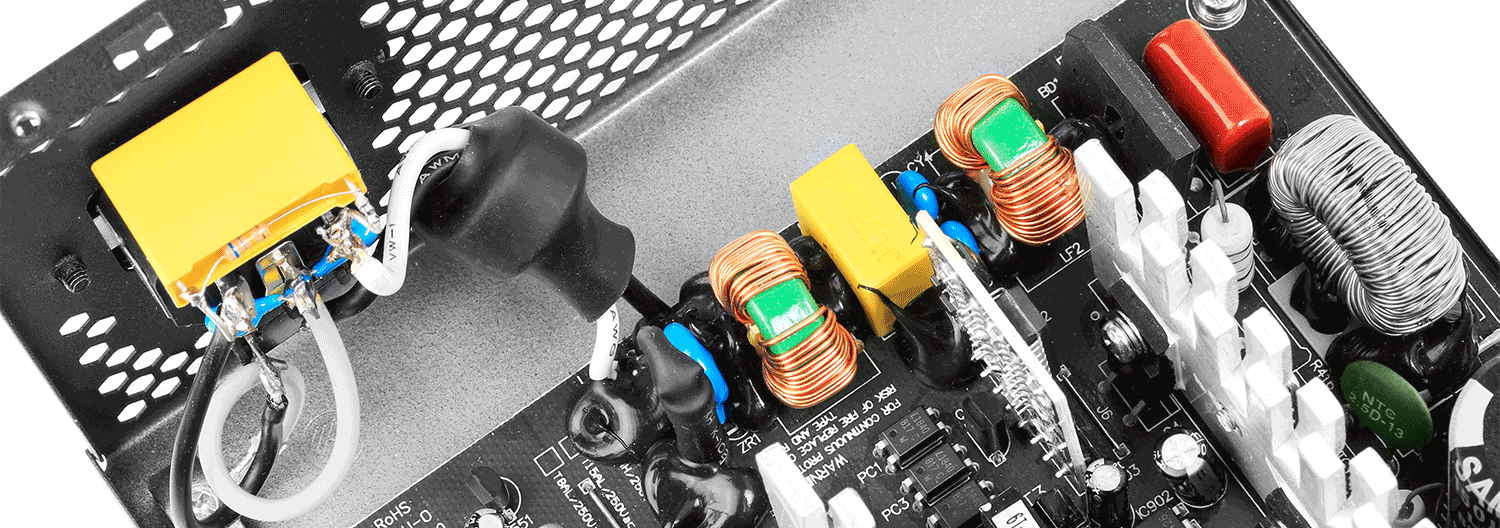

Two-stage EMI filter in the input section





Thanks to the two-stage and complete filtering in the input section of the ECO series power supplies, the EMI / RFI carriers created by the MOSFETs and switches in the input section will not penetrate the city's power transmission and distribution network under any circumstances. Also, thanks to the two components NTC Thermistor and MOV (Metal Oxide Varistor) installed in this section, the ECO series power supplies are insured against primary inrush currents and severe voltage spikes in the city.

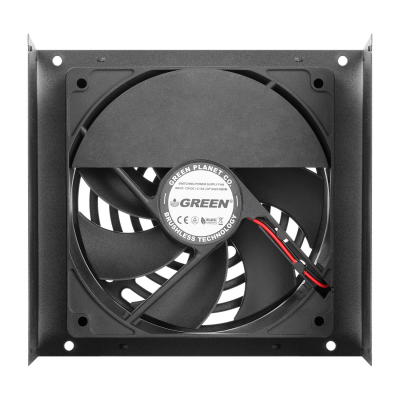

Ultra-quiet thanks to the smart fan controller

Thanks to the ultra-intelligent fan controller for the new generation of ECO power supplies, the sound noise of these models is very low up to 70% of the rated capacity of the power supply, and in this range, practically no sound from the power fan will reach the user.





Diagram of energy consumption efficiency, power factor and fan performance







Output cables configuring







Current and power distribution table of output rails







General specifications
Series ECO
Model GP300A-ECO Rev3.1
Continuous Power 300W
Form Factor ATX PS2
Dimensions 86mm x 150mm x 140mm
Weight 1000 Gram
Case Color Black
Material SGCC
Cable Management Type Fixed
Cables Type Braided cover
Regulatory CE, TUV, CB, FCC, CUL
Technical Specifications
ATX 12V Standard Version v2.31
80Plus 80PLUS Standard
AC Input 200-240Vac RMS
Input Current 3.0A
Working Humidity Range 90% - 20%
Continuous Output Rated Temperature 0C - 40C
Frequency 47Hz - 63Hz
230V Effceincy Range 85% - 82%
Average 230 V Efficiency 82.5%
Standby Power Consumption (ErP Ready (< 0.5W at Standby Mode
PFC Type Active PFC
Power Factor From 0.9
Hold-Up-Time 16ms @ 80% Load
Primary Side Topology Double-Forward
Secondary Side Topology Group Regulation
Primary Capacitor Type Electrolytic (SamXon) 85°C
Secondary Capacitors Type Electrolytic (SamXon) 105°C
Protections OVP, UVP, OPP, SCP, SIP
PowerGood Signal 100ms - 500ms
MTBF 100.000hrs @ 25°C, 230Vac, 50Hz
Fan Type & Size 120mm - Sleeve Bearings Fan
Number of output power connectors
MB 20+4 Pin 1 Qty
CPU 12V 4+4 Pin 1 Qty
SATA 4 Qty
4Pin Molex 2 Qty
Current and power of output rails
12V Max Load+ 276W
Max 3.3V+ & +5V Combined Power 103W
Maximum +12V Output Current 23A
Maximum +5V Output Current 15A
Maximum +3.3V Output Current 21A
Maximum +5V/SB Output Current 2.5A
Maximum -12V Output Current 0.3A
Warranty / After-sales service
Warranty Period 37 months warranty and 5 years after-sales service

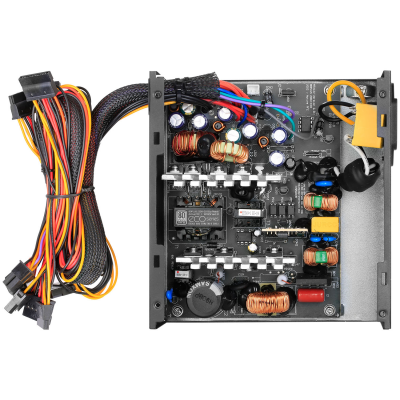

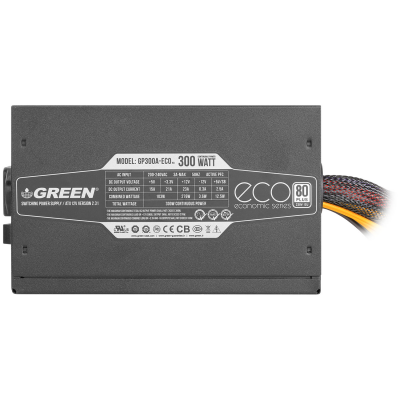

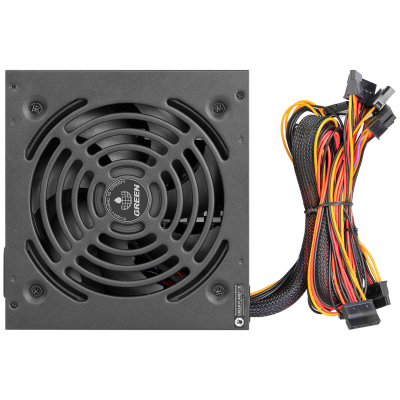

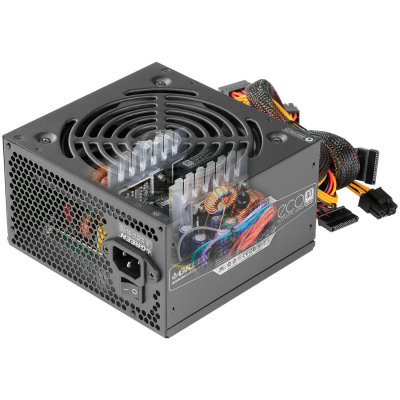

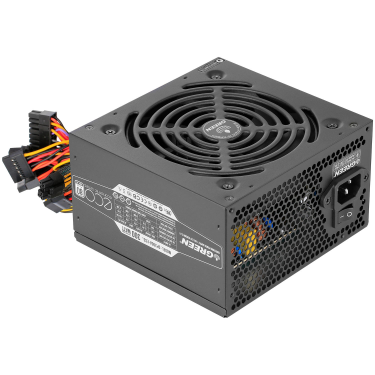

GP300A-ECO Rev3.1 Gallery

Green PSU Comparison Table
Full Technical Specifications comparison For GREEN Power Supplies
Size : 2.23MB
GREEN PSU Calculator Guide
Buying Guide and power consumption of PC hardware
Size : 1.69MB
GREEN Product Catalog
Full GREEN Product Catalog for Q3-2020
Size : 52.1MB

• The expiration date of the power supply is indicated on the barcode label of the device serial number (installed on the power supply and product box) and the GREEN warranty criterion for after-sales service support is only at the same date.

• Any damage or tampering with the barcode, the serial number of the device, or the sealing label of the power supply guarantee will invalidate.

• Environmental conditions for using switching power supplies such as temperature range, humidity, and basic ventilation are listed on the technical specifications label and manual. Power operation outside the mentioned conditions will void the warranty.

• Any physical damage such as melting and deformation of connectors, burning and any damage to wires, deformation, and paleness of the metal box caused by improper transportation and operation will void the warranty.

• Switching power supply warranty only includes technical defects due to power generation operations, technical defects due to opening the power door by unauthorized persons, tampering with internal circuits, incompatibility of power output for power supply with consumable hardware and installation in non-standard places and conditions, etc. is not included in the warranty service.

• Any damage caused by impact, natural disasters, fire, city power fluctuations, physical damage, fluid ingress is not covered by the warranty.

• Any physical damage, breakdown, or damage caused by improper operation by unconventional software and hardware outside the technical specifications of Power such as non-computer industrial applications (such as LED boards) and crypto-currency extraction (mining) will void the warranty.

• In case of general system damage to your PC components, according to our experts, GREEN Warranty will ONLY include the provision of services to the Power supply. Other hardware components and information stored by the user will not be covered by our warranty services.

• In all modular and semi-modular power supplies, each model has its own special cables. Replacing the cables with miscellaneous samples and not approved by GREEN experts or using other series cables and different models of GREEN power supplies on another model will invalidate the warranty.

• Any change in the specifications of the device and its opening by unauthorized persons will invalidate the warranty.

• Due to the rapid growth and development of computer parts, in the absence of the original model of the device, alternative models are offered, taking into account the price difference of the time being.

• Defective power supply to sales agents or warranty service office for replacement (according to warranty conditions), repair, or complete technical testing is the responsibility of the buyer.

1. Please make sure that the power cord is properly connected and that the power button on the back of the power supply is on.

2. Please ensure the correct and complete connection of all cables as well as the correct direction of the connectors to your system.

3. Make sure there is no short circuit in the system. To do this, remove one of the system components from the circuit each time and try again.

4. If any of the above happens to you, unplug the power supply for 2 minutes and turn it off. Then reconnect the power supply.

5. If Power fails to turn on the system in compliance with any of the above, please contact GREEN after-sales service.

For this purpose, from the top menu of the website, click on the "Calculator" section. Then, select the technical specifications of your parts. Finally, this system introduces the appropriate power supply compatible with your system.

Complete testing of switching power supplies requires specialized equipment and trained personnel. Using the following trick, you can ensure the initial health of your power supply:

- First disconnect all power connectors from the system and power supply. Then connect the desired power to the power wall outlet and turn on the power switch on the back of the power. Next, connect the green wire (pin number 15) and one of the black wires (pin number 16) to the 24-pin power connector using a wire. If the power fan turns on, your power supply is apparently in "OK" status.

- For 12V+ voltage (yellow wires) maximum 5% ± Nominal value: 12.6V+ to 11.4V+

- For voltage 5V+ (red wires) maximum 5% ± Nominal value: 5.25V+ to 4.75V+

- For voltage 3.3V+ (orange wires) maximum 5% ± Nominal value: 3.47V+ to 3.14V+

- For 5VSB+ voltage (paint wire) maximum 5% ± Nominal value: 5.25V + to 4.75V+

- For voltage 12V- (blue wire) maximum 10% ± Nominal value: 10.8V- to 13.2V-

Yes. Thanks to the Active PFC circuit and the protections provided in the input section of the GREEN power supplies, there is no need to worry about connecting this type of UPS to all models of GREEN power supplies.

No. Strictly avoid connecting cables of different models to other models. The arrangement of the pins, the diameter of the wires and the metal alloy of the connectors is unique in different families of GREEN power supplies. Use only the cables inside the power box or the cables approved by the GREEN after-sales service unit.

No. Most PCIe risers on the market carry even more power than the standard for PCIe x16 (about 75W). However, according to ATX standards, SATA and molex connectors have a maximum power transfer of 54W. This means that 21W is applied more to these connectors and this will cause many problems for the user.

The processor power connector (E-ATX) in all green power supplies is of 4 + 4 pin type, which are connected to each other through a special socket. To separate this socket, just pull the socket out from both sides.

This blank pin corresponds to a voltage of -5V. This voltage has been removed in power supplies with ATX12V v2.01 and above. As a result, all modern and new power supplies do not have this pin.

In this video, the reasons and solutions to solve this problem are fully explained:
