Almost 5 years have passed since the launch of the popular and affordable ORAMAN case. At the time of its release, this case was considered the first cheap case with a reverse skeleton in the country's market, and it was an introduction to breaking the taboo for a wider supply of cases with a modern and up-to-date skeleton in the domestic personal computer market...

Now that a long time has passed since the release of the first version of this case, many desktop computer users in the country cannot afford to buy it as before and have to use low-end and economical cases to assemble their systems. For this reason, in order to update the best-selling and popular ORAMAN case, according to the needs of today's modern systems and the expectations that most desktop users have of an inexpensive, standard and well-made case, they are working on a new version of the ORAMAN case under the name ORAMAN Plus, we will continue to introduce the new features and key features of the new ORAMAN+ case...



The most important features and capabilities of the ORAMAN + case at a glance

  • Strong and reinforced body with 0.7mm thick SECC sheet
  • Wide internal space with the possibility of installing 4 120mm fans
  • Moving the front panel ports on the front of the case for easy access
  • Equipped with 1 USB 3.0 port and 2 USB 2.0 ports on the front panel
  • Equipped with 1 120mm (Fluid Shield Bearing (FSB) type fan at the back of the case
  • It has a washable cellulose filter in the power air intake section with easy installation
  • Ability to install water cooling with radiator dimensions of 120/240mm
  • Has the ability to install most professional Air Coolers up to a height of 160mm
  • The ability to install high-end graphics cards with a maximum length of 390mm
  • It has strong bases equipped with anti-vibration pads to increase the stability and endurance of the case
  • Ability to install power in both directions (power fan upwards or downwards) suitable for office systems
  • Equipped with raised side covers for better cable management and more stylish assembly



Introducing the skeleton and capabilities of the Oraman Plus Green case

In general, the skeleton of the new ORAMAN + case is designed in the same way as its previous version in the form of a reverse skeleton (embedded power in the bottom part of the case), but with the changes made in the compartments for installing storage equipment, there are no restrictions for installing high-end and long graphics cards. (Maximum 390mm) will not exist. Also, with the optimization, the ability to install an Air Cooler with a maximum height of 160mm is also provided for this case.

The most important thing is to strengthen the thickness of the SECC sheet used in the skeleton of this case. In the new version, the 0.7mm thick sheet has been replaced by the 0.45mm sheet used in the previous version, which has significantly increased the strength of the skeleton of this case.

In addition, with the protrusions on both side doors, there is enough space for managing cables in the back of the case tray, as well as the ability to install tower coolers with a high height.

Fundamental changes have also been made in the front panel of the case. There is no more clear and scratchy panel. In the new version, the panel is far stronger than ABS plastic with a simple design and of course aluminum design and pattern, and the position of the switches and ports of the front panel has also been moved to the upper part of the panel on the roof of the case for quick and easy access. Is.

کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus

The skeleton of this case, like the previous version, has 7 expansion slots, and in this sense, the ability to use 3 Multi-GPU configurations is possible in most cases.

In the front panel, as in the previous version, a USB 3.0 port is considered, but another USB 2.0 port has also been added to this collection, and all in all, there are two USB 2.0 ports, one USB 3.0 port, and two 3.5mm jacks. The HD Audio type will be used to connect headphones and microphones.

As mentioned, due to the changes made in the skeleton case to increase the installation space of long graphics cards and also the desire of users to use storage equipment with dimensions of 2.5" such as SSD instead of conventional HDDs with dimensions of 3.5" in the new version of this case Installation of two 3.5" sliding hard disks and 3 SSDs with 2.5" dimensions is considered. Also, despite the dim presence of optical drives (ODD) in today's new systems, there is still a place for installing 5.25 standard drives in this case.

کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus

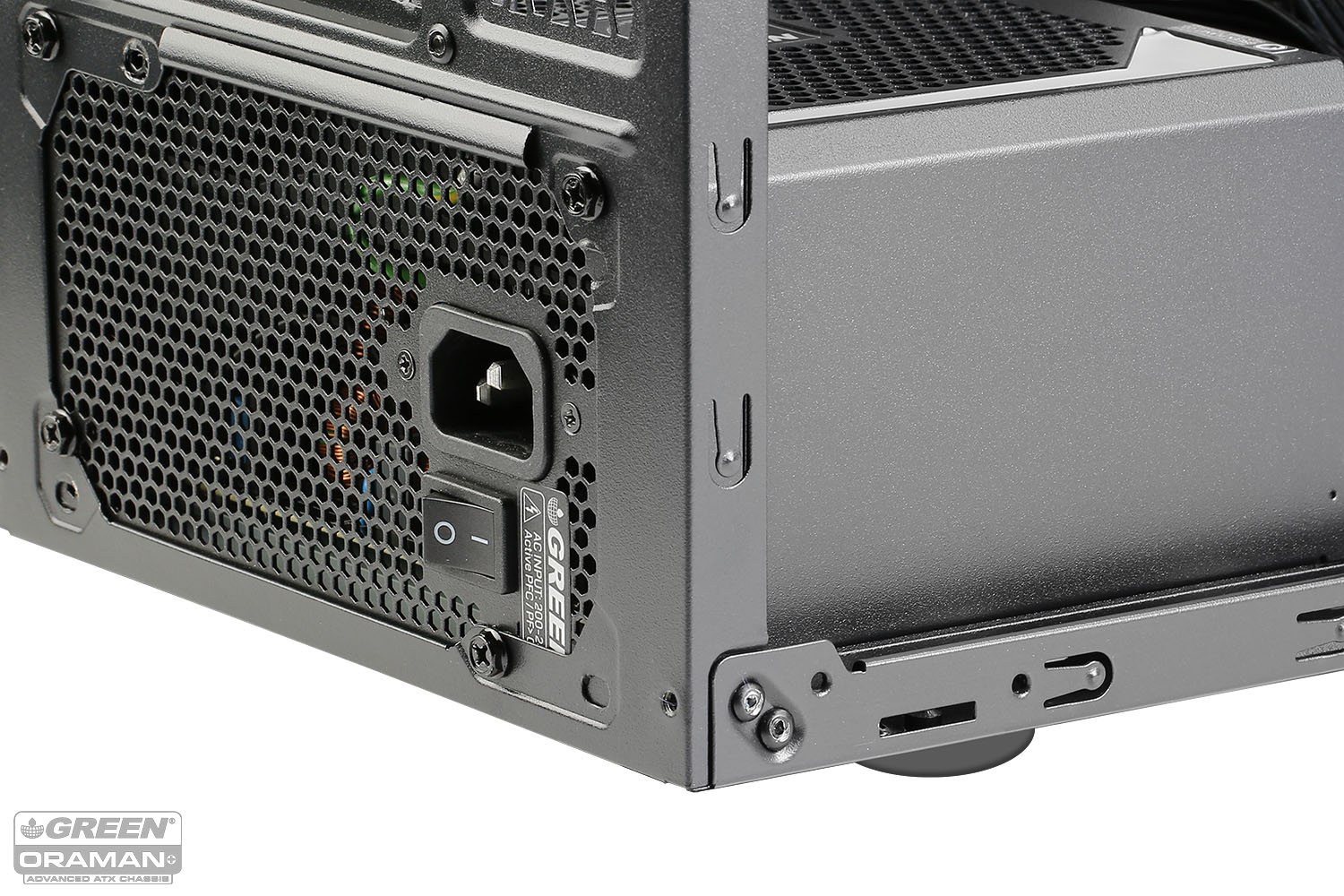

One of the features that is usually less seen in cases in this price category is the installation of silicone pads in the special place for power installation and also under the case bases. In practice, these pads neutralize slight vibrations and sound noise caused by these vibrations, increase the strength and stability of the case, and prevent the case from sliding on slippery surfaces. Also, for office purposes, the location of the power in the Oraman Plus case is designed in such a way that, according to the conditions of use, the power can be installed on the skeleton of this case from both sides (the power air inlet from the bottom of the case or from inside the case.



کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus

Features and capabilities of the cooling case of Oraman Plus Green

As with most low-end and cheap Green cases, a 120mm fan is included in the back of the case to exhaust hot air inside the case. The fan considered in the new version of the Oraman case has a maximum rotation speed of 1100 RPM and is equipped with a Fluid Shield Bearing (FSB). (Sleeve Bearing) used in the previous generation, so that in most economic to mid-range systems, there will be no requirement to buy a separate fan in this case.

In addition, the ability to install two 120mm fans on the front tray along with another 120mm fan on the side door is provided for this case so that more professional users can easily increase the ventilation power of this affordable case by installing more fans.

This has made it possible to install a water cooling unit equipped with a 120mm radiator in the back part of the case or a water cooling unit in the front part of the case.

کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus کیس_اورامان_پلاس_گرین_oraman_plus

Also, as mentioned, due to the optimizations made in the design of the skeleton as well as the built-in protrusions on the side doors of the case, the ability to install air cooling (Air Cooling) up to a height of 160mm has been provided for this economic case so that even professional users can Do not have significant restrictions for installing professional tower coolers.

After all, for the power air inlets in this case, a washable cellulosic filter and quick installation capability is considered to prevent dust and lint from entering the system's power supply.

Comparison table of the capabilities of the old Oraman case with the new Oraman Plus Green case

External view of the case

کیس_اورامان_پلاس_گرین_oraman_plus
View inside the case

Case model ORAMAN + ORAMAN
year of supply 1393 / 2014 1397 / 2019
case width 195mm 205mm
Case thickness 0.45mm 0.7mm
Weight net case 3200g 3800g
Graphics card installation space.     270mm max 390mm max
Air cooling installation space 152mm max 160mm max
Ability to install a fan in front of the case.   1x120mm 2x120mm
Ability to support water cooling --- 1x120mm + 1x240mm
Front panel USB ports 1xUSB3.0 + 1xUSB2.0 1xUSB3.0 + 2xUSB2.0
Front panel audio jacks (AC-97 (Analog (HD Audio (Digital
